咽后壁瓣咽成形术对腭裂术后患者颌面部生长影响的初步研究

doi:10.7518/gjkq.2023022

摘要/Abstract

摘要：

目的通过对颌面部软、硬组织形态的测量分析，探讨咽后壁瓣咽成形术对腭裂术后患者颌面部生长的影响。方法对56例腭裂术后腭咽闭合不全患者，采用病例对照研究：A组21例，为腭裂术后行咽后壁瓣咽成形术患者；B组（对照组1）15例，为腭裂术后行Furlow腭再成形术患者；C组（对照组2）20例，为腭裂术后未行二期手术患者。对所有患者随访1年以上的X线头影侧位片进行测量，硬组织测量包含颅底、上颌骨、面高3个方面，软组织包含10个面部轮廓指标，用SPSS 21.0软件进行统计学分析。结果手术年龄4~7岁的咽瓣手术患者与同年龄行腭再成形术及腭裂术后未行二期手术患者相比较，在水平及垂直方向上，软、硬组织生长均未见明显差异。结论咽后壁瓣咽成形术对腭裂术后患者的颌面部生长发育没有明显影响。

关键词: 腭裂, 腭咽闭合不全, 咽后壁瓣咽成形术, Furlow腭再成形术, 颌面部生长发育

Abstract:

Objective The study aimed to analyze the effect of posterior pharyngeal flap surgery on the maxillofacial growth of patients after palatoplasty by measuring the maxillofacial soft and hard tissue morphology. Methods 56 cases were included in this study. Group A included 21 cases who had undergone posterior pharyngeal flap surgery after palatoplasty. Group B (Control Group 1) included 15 cases who had had Furlow palatoplasty surgery after palatoplasty. Group C(Control Group 2) included 20 patients who had not received secondary operation after palatoplasty. At least one year postoperative lateral cephalometric radiographs were obtained from all patients. Three aspects of hard tissue (skull base, maxilla, facial height) and 10 facial contour parameters of soft tissue were evaluated. SPSS 21.0 was used to analyze data. Results For the patients aged 4-7 years, there was no significant difference in the growth of soft and hard tissues among three groups in both horizontal and vertical directions. Conclusion Posterior pharyngeal flap surgery had no significant effect on maxillofacial growth and development in patients after palatoplasty.

Key words: cleft palate, velopharyngeal insufficiency, posterior pharyngeal flap, Furlow palatoplasty, maxillofacial growth and development

中图分类号:

R 782.12

张宇宁,曾妮,张焙,石冰,郑谦. 咽后壁瓣咽成形术对腭裂术后患者颌面部生长影响的初步研究[J]. 国际口腔医学杂志, 2023, 50(1): 66-71.

Zhang Yuning,Zeng Ni,Zhang Bei,Shi Bing,Zheng Qian.. A preliminary study of the effect of posterior pharyngeal flap surgery on the maxillofacial growth of patients after palatoplasty[J]. Int J Stomatol, 2023, 50(1): 66-71.

图/表 4

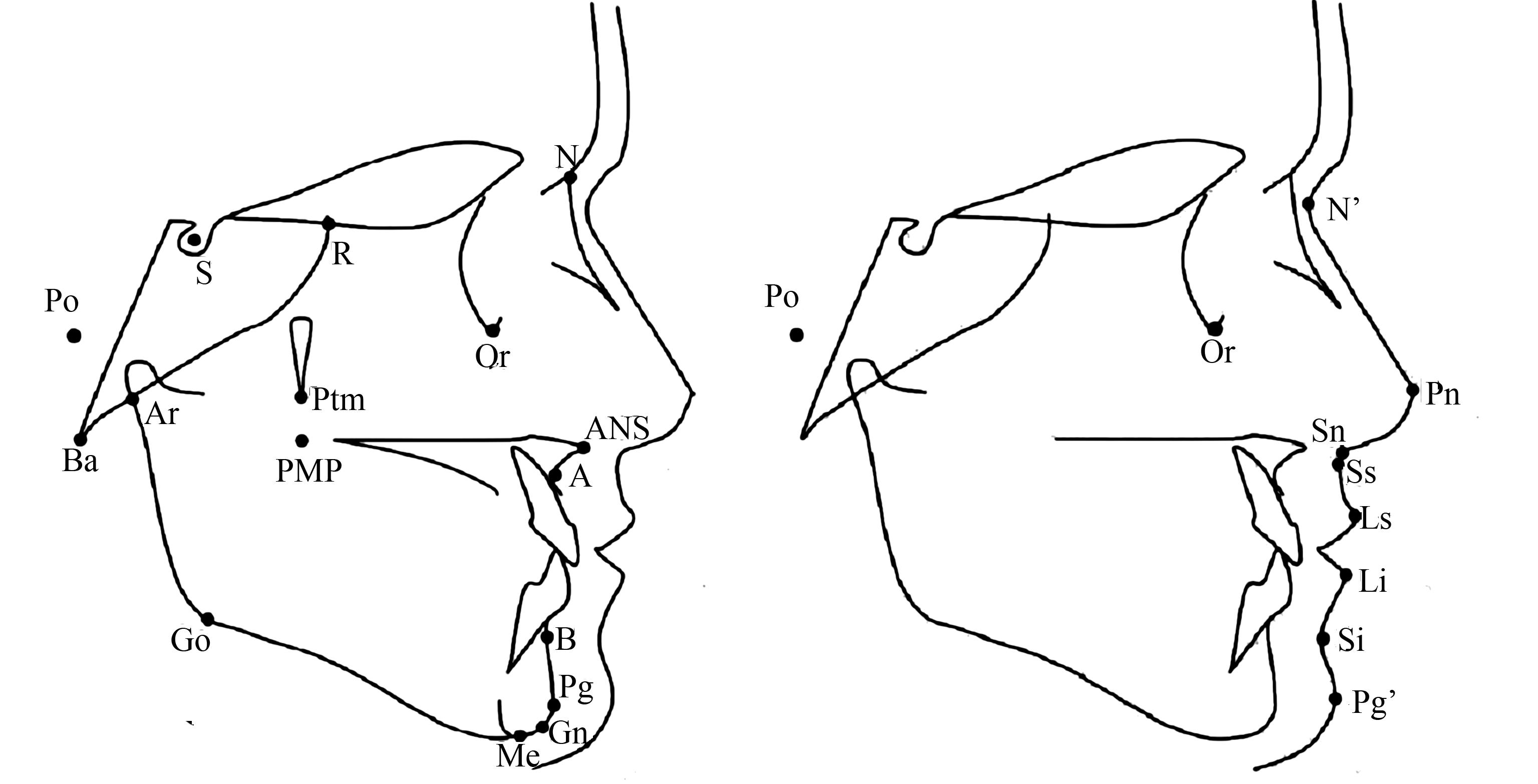

图 1

表 1

表 2

表 3

参考文献 31

1	Liao YF, Noordhoff MS, Huang CS, et al. Comparison of obstructive sleep apnea syndrome in children with cleft palate following Furlow palatoplasty or pharyngeal flap for velopharyngeal insufficiency[J]. Cleft Palate Craniofacial J, 2004, 41(2): 152-156.
2	高伟民, 梁舒然, 白玉兴. 北京地区126名正常𬌗青少年颅面部三维测量初探[J]. 中华口腔医学杂志, 2012, 47(12): 735-738.
	Gao WM, Liang SR, Bai YX. Three-dimensional analysis of craniofacial growth in adolescents with normal occlusion in Beijing[J]. Chin J Stomatol, 2012, 47(12): 735-738.
3	Primozic J, Perinetti G, Contardo L, et al. Facial soft tissue changes during the pre-pubertal and pubertal growth phase: a mixed longitudinal laser-scanning study[J]. Eur J Orthod, 2017, 39(1): 52-60.
4	Keller BG, Long RE Jr, Gold ED, et al. Maxillary dental arch dimensions following pharyngeal-flap surgery[J]. Cleft Palate J, 1988, 25(3): 248-257.
5	Heliövaara A, Haapanen ML, Hukki J, et al. Long-term effect of pharyngeal flap surgery on craniofacial and nasopharyngeal morphology in patients with cleft palate[J]. Acta Odontol Scand, 2003, 61(3): 159-163.
6	Subtelny JD, Nieto RP. A longitudinal study of maxillary growth following pharyngeal-flap surgery[J]. Cleft Palate J, 1978, 15(2): 118-131.
7	Long RE Jr, McNamara JA Jr. Facial growth following pharyngeal flap surgery: skeletal assessment on serial lateral cephalometric radiographs[J]. Am J Orthod, 1985, 87(3): 187-196.
8	Semb G, Shaw WC. Pharyngeal flap and facial growth[J]. Cleft Palate J, 1990, 27(3): 217-224.
9	Isberg A, Ren YF, Henningsson G, et al. Facial growth after pharyngeal flap surgery in cleft palate patients: a five-year longitudinal study[J]. Scand J Plast Reconstr Surg Hand Surg, 1993, 27(2): 119-126.
10	Pearl RM, Kaplan EN. Cephalometric study of facial growth in children after combined pushback and pharyngeal flap operations[J]. Plast Reconstr Surg, 1976, 57(4): 480-483.
11	Jones CM, MacKay AFJ, MacKay DR, et al. Do pharyngeal flaps restrict early midface growth in patients with clefts[J]. Cleft Palate Craniofacial J, 2016, 53(6): 629-633.
12	于晓惠, 黄金芳. 正常𬌗人颅面部牙-骨骼-软组织结构形态及生长发育的对比研究[J]. 中华口腔医学杂志, 1989, 24(1): 30-33.
	Yu XH, Huang JF. The comparative study of craniofacial morphology and growth and development of tooth-bone-soft tissue structures of adolescents with normal occlusion[J]. Chin J Stomatol, 1989, 24(1): 30-33.
13	Chhibber A, Upadhyay M, Uribe F, et al. Long-term surgical versus functional Class Ⅱ correction: a comparison of identical twins[J]. Angle Orthod, 2015, 85(1): 142-156.
14	Khan AR, Fida M, Sukhia RH. Factors affecting changes in soft tissue profile after various treatment modalities for skeletal Class Ⅱ malocclusion: a cross-sectional study[J]. Int Orthod, 2019, 17(3): 497-505.
15	Storms AS, Miclotte A, Grosjean L, et al. Short-term hard and soft tissue changes after mandibular advancement surgery in Class Ⅱ patients: a retrospective cephalometric study[J]. Eur J Orthod, 2017, 39(5): 567-576.
16	Lacerda RHW, Vieira AR. Retrognathic maxilla in individuals born with oral clefts is due to intrinsic factors and not only due to early surgical treatment[J]. Angle Orthod, 2021, 91(2): 243-247.
17	Farber SJ, Maliha SG, Gonchar MN, et al. Effect on facial growth of the management of cleft lip and pa-late[J]. Ann Plast Surg, 2019, 83(6): e72-e76.
18	Smahel Z. Craniofacial morphology in adults with bilateral complete cleft lip and palate[J]. Cleft Pa-late J, 1984, 21(3): 159-169.
19	Enemark H, Bolund S, Jørgensen I. Evaluation of unilateral cleft lip and palate treatment: long term results[J]. Cleft Palate J, 1990, 27(4): 354-361.
20	周珅玥, 欧平花, 余明珠, 等. 湖南汉族正常𬌗成人面部软组织侧貌头影测量分析[J]. 中南大学学报(医学版), 2015, 40(4): 398-405.
	Zhou SY, Ou PH, Yu MZ, et al. Cephalometric analysis of the soft tissue profile in Hunan Han adults with normal occlusion[J]. J Central South Univ (Med Sci), 2015, 40(4): 398-405.
21	Richmond S, Zhurov AI, Ali ABM, et al. Exploring the midline soft tissue surface changes from 12 to 15 years of age in three distinct country population cohorts[J]. Eur J Orthod, 2020, 42(5): 517-524.
22	Ettinger RE, Oppenheimer AJ, Lau D, et al. Obstructive sleep apnea after dynamic sphincter pharyngoplasty[J]. J Craniofacial Surg, 2012, 23(7 ): 1974-1976.
23	Prabhu SS, Kiell EP, David LR, et al. Obstructive sleep apnea secondary to pharyngeal narrowing from horizontal donor site closure during posterior pharyngeal flap surgery[J]. Cleft Palate Craniofacial J, 2020, 57(9): 1140-1145.
24	Jefferson Y. Mouth breathing: adverse effects on facial growth, health, academics, and behavior[J]. Gen Dent, 2010, 58(1): 18-25.
25	Yamaguchi K, Lonic D, Lee CH, et al. A treatment protocol for velopharyngeal insufficiency and the outcome[J]. Plast Reconstr Surg, 2016, 138(2): 290e-299e.
26	Sullivan SR, Marrinan EM, Mulliken JB. Pharyngeal flap outcomes in nonsyndromic children with repaired cleft palate and velopharyngeal insufficiency[J]. Plast Reconstr Surg, 2010, 125(1): 290-298.
27	de Blacam C, Smith S, Orr D. Surgery for velopharyngeal dysfunction: a systematic review of interventions and outcomes[J]. Cleft Palate Craniofacial J, 2018, 55(3): 405-422.
28	Abdel-Aziz M, Hussien A, Kamel A, et al. The impact of velopharyngeal surgery on the polysomnographic parameters after cleft palate repair[J]. J Craniofacial Surg, 2018, 29(3): 717-719.
29	Wells MD, Vu TA, Luce E. Incidence and sequelae of nocturnal respiratory obstruction following posterior pharyngeal flap operation[J]. Ann Plast Surg, 1999, 43(3): 252-257.
30	Liao YF, Chuang ML, Chen PKT, et al. Incidence and severity of obstructive sleep apnea following pharyngeal flap surgery in patients with cleft palate[J]. Cleft Palate Craniofacial J, 2002, 39(3): 312-316.
31	周治波, 罗奕, 马莲. 咽后壁瓣断蒂对腭咽闭合影响的探讨[J]. 中华口腔医学杂志, 2010, 45(10): 592-595.
	Zhou ZB, Luo Y, Ma L. Division of flap in cleft palate patients after posterior pharyngeal flap surgery[J]. Chin J Stomatol, 2010, 45(10): 592-595.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

项目	A组	B组	C组	P值
性别
男女	14	11	11	0.275
男女	7	4	9	0.275
一期腭裂手术年龄/岁	0.972±0.257	1.545±1.031	1.288±0.963	0.153
二期手术年龄/岁	5.143±0.854	5.467±0.743	-	0.235
复诊年龄/岁	8.429±2.039	8.267±1.163	8.900±1.334	0.467
腭裂类型
单纯腭裂单侧完全性唇腭裂双侧完全性唇腭裂	5	1	1	0.550
	11	10	18
	5	4	1

测量指标	A组	B组	C组	P值
SN/mm	60.906±4.026	62.207±6.464	60.817±3.303	0.731
S-Ba/SN	0.678±0.057	0.711±0.053	0.684±0.053	0.195
N-Ba/SN	1.538±0.050	1.572±0.085	1.545±0.054	0.260
N-S-Ba/°	132.838±6.305	132.663±4.849	132.808±6.226	0.996
PMP-A/SN	0.618±0.076	0.627±0.077	0.597±0.049	0.403
PMP-ANS/SN	0.704±0.063	0.722±0.075	0.684±0.046	0.206
Ba-A/SN	1.235±0.076	1.278±0.086	1.240±0.071	0.231
Ba-ANS/SN	1.321±0.065	1.372±0.091	1.328±0.065	0.101
Ba-PMP/SN	0.618±0.057	0.650±0.081	0.643±0.045	0.121
Ba-N-ANS/°	60.596±4.922	61.631±4.293	60.687±3.841	0.756
S-N-ANS/°	79.491±5.199	81.197±4.851	79.626±4.326	0.530
S-N-A/°	74.895±5.162	76.016±5.115	74.236±3.430	0.529
R-PMP/SN	0.654±0.087	0.631±0.087	0.657±0.069	0.603
A-NPg/SN	0.010±0.069	0.031±0.071	0.054±0.045	0.080
N-Me/SN	1.688±0.119	1.691±0.140	1.639±0.108	0.338
ANS-N/SN	0.788±0.066	0.767±0.094	0.749±0.047	0.200
ANS-Me/SN	0.900±0.079	0.924±0.059	0.890±0.088	0.456

测量指标	A组	B组	C组	P值
FH-N’Pg’/°	82.513±4.394	81.993±6.239	84.243±4.814	0.380
Sn-Pn/SN	0.202±0.045	0.203±0.045	0.207±0.037	0.916
Ss-Ls/SN	0.048±0.033	0.044±0.039	0.059±0.024	0.357
H-N’Pg’/°	11.511±8.332	9.182±5.983	9.449±5.785	0.522
Sn-H/SN	0.102±0.056	0.102±0.048	0.112±0.036	0.761
A-Sn/SN	0.162±0.056	0.165±0.041	0.177±0.032	0.453
Ls-Si/SN	0.222±0.039	0.219±0.053	0.220±0.036	0.975
Li-LsPg’/SN	0.055±0.044	0.071±0.030	0.084±0.042	0.088
Si-LsPg’/SN	0.032±0.023	0.041±0.024	0.032±0.020	0.445
Pg-Pg’/SN	0.169±0.034	0.168±0.046	0.174±0.036	0.852
