有限元分析在髓腔固位冠修复中的应用进展

doi:10.7518/gjkq.2024051

摘要/Abstract

摘要：

随着粘接材料的更新升级、牙髓根治技术的长足进步及修复制作工艺的飞速发展，对于龈距离短、剩余牙体组织少、根管治疗术后死髓磨牙的保存呈现了美好前景。保存天然牙、残冠继续行使功能使得髓腔固位冠的修复理念得到临床医生的接受与认可。利用有限元法进行应力分析具有高效、精确、可重复等优点。本文就有限元法在髓腔固位冠修复中的应力研究应用进行综述，探讨髓腔固位冠修复中的注意事项。

关键词: 有限元分析法, 髓腔固位冠, 陶瓷

Abstract:

The preservation of low occlusal-gingival distance, few residual dental tissues, and dead pulp molar after root canal treatment has good prospects given the updating and upgrading of adhesive materials, the rapid progress of radical pulp technology, and the rapid development of restorative production technology. The preservation of natural teeth and the continuation of residual crown function have made the repairing concept of endocrown accepted and recognized by clinicians. Stress analysis using finite element method has the advantages of being efficient, accurate, and reproducible. This paper reviews the application of finite element method in endocrown repair and discusses precautions in endocrown repair.

Key words: finite element analysis, endocrown, ceramic

中图分类号:

R783.3

曹友辉,包雪梅. 有限元分析在髓腔固位冠修复中的应用进展[J]. 国际口腔医学杂志, 2024, 51(3): 337-343.

Youhui Cao,Xuemei Bao. Application progress on finite element analysis in endocrown restoration[J]. Int J Stomatol, 2024, 51(3): 337-343.

图/表 2

表 1

髓腔固位冠修复材料有限元应力分析研究"

作者	年份/年	研究类型	牙位	材料	结论
林捷等	2021	实验性	下颌第一磨牙	Lava Ultimate（3M公司，美国）、Vita Enamic （VE；Vita公司，德国）、IPS e.max CAD（Ivoclar Vivadent公司，列支敦士登）、Cercon（Dentsply公司，美国）	随着髓腔固位冠弹性模量的增加，修复体应力逐渐上升，牙体应力逐渐下降
高琳等	2022	实验性	下颌第二磨牙	IPS e.max CAD、IPS Empress and Zirconia	修复体材料杨氏模量越高，剩余牙体组织应力越集中
He等	2021	实验性	下颌磨牙	Vita Enamic（VITA公司，德国）、IPS e.max CAD（Ivoclar Vivadent公司，列支敦士登）、Grandio Blocs（VOCO公司，德国）	弹性模量越高的陶瓷材料IPS e.max CAD对黏固层和剩余釉质组织的保护作用越明显
Meng等	2021	实验性	下颌磨牙	feldspathic、lithium disilicate、Lava Ultimate	当载荷大小相同时，Lava Ultimate所制作的髓腔固位冠向牙齿组织传递的应力比feldspathic和lithium disilicate大
Tribst等	2018	实验性	上颌磨牙	IPS e.max CAD（Ivoclar Vivadent公司，列支敦士登）、IPS Empress CAD（Ivoclar Vivadent公司，列支敦士登）	由于白榴石表现出更好的生物力学行为，可能成为一种很有前途的二硅酸锂制作髓腔固位冠的替代品
Ural等	2021	实验性	下颌第一磨牙	GC Cerasmart（GC Corp公司，日本）、Lava Ultimate（3M ESPE公司，美国）、Vita Enamic（Vita Zahnfabrik公司，德国）	弹性模量较低的材料在牙本质上的应力分布较为均匀，但弹性模量较高的材料对牙本质组织的应力传递也较小
Zheng等	2021	实验性	下颌第一磨牙	Vita Suprinity（VS；Vita Zahnfabrik公司，德国）、IPS e.max CAD（Ivoclar Vivadent AG公司，列支敦士登）、Vita Enamic（VITA Zahnfabrik公司，德国）、Lava Ultimate（3M ESPE公司，美国）、Grandio blocs（VOCO公司，德国）	髓腔固位冠采用复合树脂时，应力分布更均匀，抗折能力更强。用GR制作的髓腔固位冠具有最好的整体应力分布，满足大面积咬合区域的力学要求
Zheng等	2022	实验性	下颌第一磨牙	In-Ceram Zirconia（Vita Zahnfabrik公司，德国）、Vita Suprinity（Vita Zahnfabrik公司，德国）、IPS Empress（Ivoclar Vivadent AG公司，列支敦士登）、Grandio blocs（VOCO公司，德国）、VisCalor bulk（VOCO公司，德国）、CopraPeek Light（CP；Whitepeaks公司，德国）	复合树脂GR和VC具有更均匀的应力分布，是一种很有前途的髓腔固位冠的修复材料

表 1

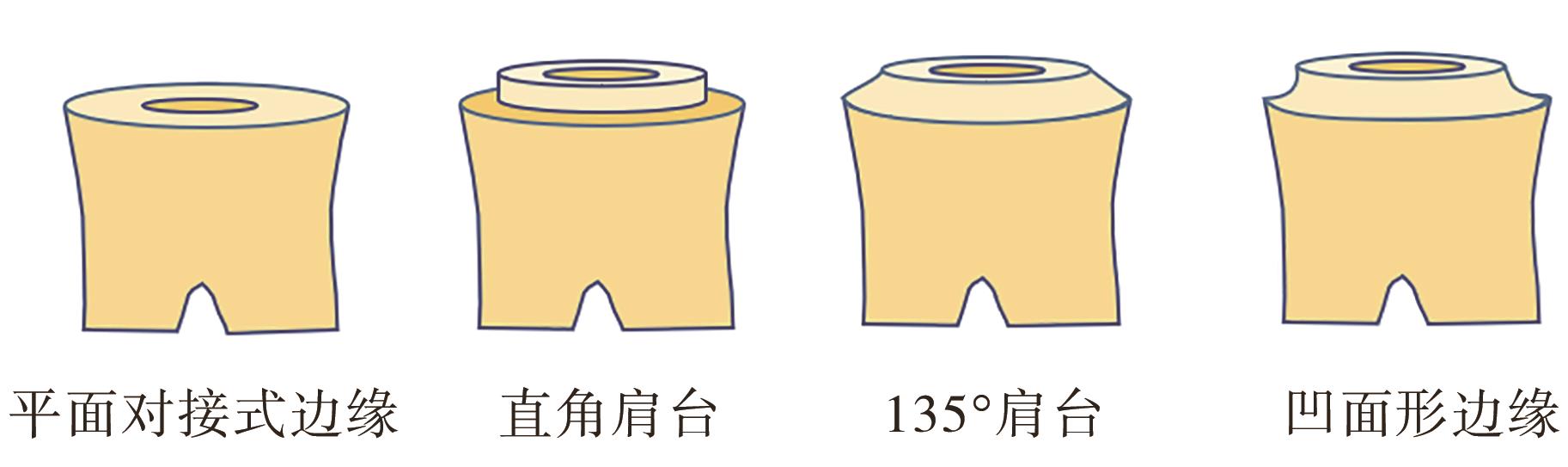

图 1

参考文献 35

1	吴倩, 张彬, 李楠, 等. 三维有限元分析在口腔医学领域的应用及研究进展[J]. 世界最新医学信息文摘, 2019, 19(20): 95-96, 99.
	Wu Q, Zhang B, Li N, et al. The application and research progress of three-dimensional finite element analysis in the field of stomatology[J]. World Latest Med Inf, 2019, 19(20): 95-96, 99.
2	陈智, 陈瑞甜. 髓腔固位冠[J]. 口腔医学研究, 2018, 34(1): 1-5.
	Chen Z, Chen RT. Endocrown[J]. J Oral Sci Res, 2018, 34(1): 1-5.
3	陈惠, 岑蓉, 张成飞. 髓腔固位冠的应用现状[J]. 口腔颌面修复学杂志, 2022, 23(5): 321-326.
	Chen H, Cen R, Zhang CF. Endocrown: the state of the art[J]. Chin J Prosthodont, 2022, 23(5): 321-326.
4	Pedrollo Lise D, van Ende A, De Munck J, et al. Biomechanical behavior of endodontically treated premolars using different preparation designs and CAD/CAM materials[J]. J Dent, 2017, 59: 54-61.
5	Zoidis P, Bakiri E, Polyzois G. Using modified polyetheretherketone (PEEK) as an alternative material for endocrown restorations: a short-term clinical report[J]. J Prosthet Dent, 2017, 117(3): 335-339.
6	Rocca GT, Daher R, Saratti CM, et al. Restoration of severely damaged endodontically treated premolars: the influence of the endo-core length on marginal integrity and fatigue resistance of lithium disi-licate CAD-CAM ceramic endocrowns[J]. J Dent, 2018, 68: 41-50.
7	林捷, 林珍香, 郑志强. 髓腔固位冠不同修复材料和厚度对应力分布的影响[J]. 口腔疾病防治, 2021, 29(11): 740-745.
	Lin J, Lin ZX, Zheng ZQ. Effects of the different materials and thicknesses on endocrown stress distribution[J]. J Prev Treat Stomatol Dis, 2021, 29(11): 740-745.
8	高琳, 韩祥永, 徐晓明. 不同材料及不同固位深度的髓腔固位冠修复下颌第二磨牙的三维有限元分析[J]. 上海口腔医学, 2022, 31(6): 621-624.
	Gao L, Han XY, Xu XM. Three-dimensional finite element analysis of three-material endocrown in the restoration of dental defects of mandibular second mo-lars[J]. Shanghai J Stomatol, 2022, 31(6): 621-624.
9	He JH, Zheng ZT, Wu M, et al. Influence of resto-rative material and cement on the stress distribution of endocrowns: 3D finite element analysis[J]. BMC Oral Health, 2021, 21(1): 495.
10	Meng QZ, Zhang YJ, Chi DL, et al. Resistance fracture of minimally prepared endocrowns made by three types of restorative materials: a 3D finite element analysis[J]. J Mater Sci Mater Med, 2021, 32(11): 137.
11	Tribst JPM, Dal Piva AMO, Madruga CFL, et al. Endocrown restorations: influence of dental remnant and restorative material on stress distribution[J]. Dent Mater, 2018, 34(10): 1466-1473.
12	Ural Ç, Çağlayan E. A 3-dimensional finite element and in vitro analysis of endocrown restorations fabricated with different preparation designs and various restorative materials[J]. J Prosthet Dent, 2021, 126(4): 586.e1-586.e9.
13	Zheng ZT, He YY, Ruan WH, et al. Biomechanical behavior of endocrown restorations with different CAD-CAM materials: a 3D finite element and in vitro analysis[J]. J Prosthet Dent, 2021, 125(6): 890-899.
14	Zheng ZT, Sun JL, Jiang LF, et al. Influence of margin design and restorative material on the stress distribution of endocrowns: a 3D finite element analysis[J]. BMC Oral Health, 2022, 22(1): 30.
15	Shams A, Elsherbini M, Elsherbiny AA, et al. Re-habilitation of severely-destructed endodontically treated premolar teeth with novel endocrown system: biomechanical behavior assessment through 3D finite element and in vitro analyses[J]. J Mech Behav Biomed Mater, 2022, 126: 105031.
16	Köseoğlu M, Furuncuoğlu F. Effect of polyetheretherketone and indirect composite resin thickness on stress distribution in maxillary premolar teeth restored with endocrown: a 3D finite element analysis[J]. J Biotechnol Strateg Heath Res, 2020, 4(3): 298-305.
17	姜又升, 冯琳, 高学军. 垫底材料弹性模量对髓腔固位冠修复后上颌前磨牙应力分布的影响[J]. 北京大学学报(医学版), 2021, 53(4): 764-769.
	Jiang YS, Feng L, Gao XJ. Influence of base mate-rials on stress distribution in endodontically treated maxillary premolars restored with endocrowns[J]. J Peking Univ (Heath Sci), 2021, 53(4): 764-769.
18	冯娟, 郭慧慧, 申晋斌, 等. 磨牙髓室底垫底厚度对全瓷嵌体冠应力分布的影响[J]. 牙体牙髓牙周病学杂志, 2017, 27(1): 16-21.
	Feng J, Guo HH, Shen JB, et al. Effects of cement thickness on the stress distribution of full-ceramic-endocrown restoration: a finite element analysis[J]. Chin J Conserv Dent, 2017, 27(1): 16-21.
19	Cheng X, Zhang XY, Qian WH. Influence of diffe-rent base materials and thicknesses on the fracture resistance of endocrown: a three-dimensional finite element analysis[J]. BMC Oral Health, 2022, 22(1): 363.
20	张英, 熊璟, 李永强, 等. 垫底材料厚度对髓腔固位冠修复后牙体组织应力影响的三维有限元分析[J]. 中国美容医学, 2019, 28(9): 102-106.
	Zhang Y, Xiong J, Li YQ, et al. Three-dimensional-finite-element comparative research of different cement thickness in endodontically treated mandi-bular molar restored with endocrown restorations[J]. Chin J Aesthetic Med, 2019, 28(9): 102-106.
21	黄绮雯, 马晓晴, 唐亮. 髓腔固位冠的临床应用研究进展[J]. 临床医学研究与实践, 2022, 7(13): 185-189.
	Huang QW, Ma XQ, Tang L. Research progress in clinical application of endocrown[J]. Clin Res Pract, 2022, 7(13): 185-189.
22	李建宾, 陈维毅, 姚蔚. 髓腔壁缺损对下颌前磨牙髓腔固位冠修复应力的影响[J]. 太原理工大学学报, 2018, 49(1): 158-163.
	Li JB, Chen WY, Yao W. Influence of cavity wall defect on stress distribution in the mandibular premolar restored with endocrown[J]. J Taiyuan Univ Technol, 2018, 49(1): 158-163.
23	吴帆, 曹谅, 姜晓南, 等. 下颌第一磨牙邻面不同高度缺损髓腔固位冠的生物力学分析[J]. 口腔医学研究, 2018, 34(1): 65-68.
	Wu F, Cao L, Jiang XN, et al. Biomechanical analysis of endocrown of mandibular first molar with different proximal heights[J]. J Oral Sci Res, 2018, 34(1): 65-68.
24	Zhang YJ, Lai HB, Meng QZ, et al. The synergetic effect of pulp chamber extension depth and occlusal thickness on stress distribution of molar endocrowns: a 3-dimensional finite element analysis[J]. J Mater Sci Mater Med, 2022, 33(7): 56.
25	林珍香, 潘在兴, 叶起清, 等. 二硅酸锂陶瓷和氧化锆髓腔固位冠的面厚度设计对抗折性能的影响[J]. 华西口腔医学杂志, 2020, 38(6): 647-651.
	Lin ZX, Pan ZX, Ye QQ, et al. Effect of occlusal thickness design on the fracture resistance of endocrowns restored with lithium disilicate ceramic and zirconia[J]. West China J Stomatol, 2020, 38(6): 647-651.
26	Dartora NR, de Conto Ferreira MB, Moris ICM, et al. Effect of intracoronal depth of teeth restored with endocrowns on fracture resistance: in vitro and 3-dimensional finite element analysis[J]. J Endod, 2018, 44(7): 1179-1185.
27	康婷, 石思琼, 赵威, 等. 上颌第一前磨牙舌尖斜形折裂不同修复设计的有限元分析[J]. 口腔医学研究, 2019, 35(10): 953-956.
	Kang T, Shi SQ, Zhao W, et al. Finite element analysis of different designs for maxillary first premolars with lingual cusp oblique defect[J]. J Oral Sci Res, 2019, 35(10): 953-956.
28	Zhu JX, Wang DM, Rong QG, et al. Effect of central retainer shape and abduction angle during preparation of teeth on dentin and cement layer stress distributions in endocrown-restored mandibular molars[J]. Dent Mater J, 2020, 39(3): 464-470.
29	Tribst JPM, Giudice RL, dos Santos AFC, et al. Lithium disilicate ceramic endocrown biomechanical response according to different pulp chamber extension angles and filling materials[J]. Materials, 2021, 14(5): 1307.
30	粟猛, 屈直. 不同制备形态对短冠磨牙髓腔固位冠抗折性影响的研究[J]. 口腔医学研究, 2021, 37(2): 118-121.
	Su M, Qu Z. Effect of preparation designs on fracture strengths of endocrown of maxillary short coronal molars[J]. J Oral Sci Res, 2021, 37(2): 118-121.
31	Gong QM, Huang L, Luo JP, et al. The practicability of different preparation of mandibular molar restored by modified endocrown with intracanal extension: computational analysis using finite element models[J]. Comput Methods Programs Biomed, 2022, 226: 107178.
32	Gulec L, Ulusoy N. Effect of endocrown restorations with different CAD/CAM materials: 3D finite element and weibull analyses[J]. Biomed Res Int, 2017, 2017: 5638683.
33	Aldesoki M, Bourauel C, Morsi T, et al. Biomecha-nical behavior of endodontically treated premolars restored with different endocrown designs: finite ele-ment study[J]. J Mech Behav Biomed Mater, 2022, 133: 105309.
34	王慧媛, 付强, 张春光, 等. 边缘形式对大面积缺损第一磨牙髓腔固位冠应力分布的影响[J]. 口腔医学研究, 2015, 31(11): 1121-1124.
	Wang HY, Fu Q, Zhang CG, et al. Research on the biomechanical effects of restoration method on first molar with significant loss of coronal structure[J]. J Oral Sci Res, 2015, 31(11): 1121-1124.
35	郭靖, 王潇宇, 李学盛, 等. 不同边缘设计的髓腔固位冠修复下颌前磨牙的应力分析[J]. 南方医科大学学报, 2016, 36(2): 200-204.
	Guo J, Wang XY, Li XS, et al. Influence of different designs of marginal preparation on stress distribution in the mandibular premolar restored with endocrown[J]. J South Med Univ, 2016, 36(2): 200-204.
