不同类型的辅弓在正畸前牙压低中的应用与研究进展

斯佳萍(),吕林,王思婕,周宇,陈小燕()

  1. 浙江大学医学院附属口腔医院正畸科 浙江大学口腔医学院 浙江省口腔疾病医学研究中心浙江省口腔生物医学研究重点实验室 浙江大学癌症研究所 杭州 310006
  • 收稿日期:2023-06-29 修回日期:2023-10-09 出版日期:2024-03-01 发布日期:2024-03-11
  • 通讯作者: 陈小燕
  • 作者简介:斯佳萍，住院医师，硕士，Email：3150103226@zju.edu.cn
  • 基金资助:
    浙江大学基本科研业务费专项资金(2021FZZX005-36);中国牙病防治基金会科研项目(A2021-090)

Application and research progress of various intrusive arches in the orthodontic intrusion of anterior teeth

Jiaping Si(),Lü Lin,Sijie Wang,Yu Zhou,Xiaoyan Chen()

  1. Dept. of Orthodontics, Stomatology Hospital, School of Stomatology, Zhejiang University School of Medicine, Zhejiang Provincial Clinical Research Center for Oral Diseases, Key Laboratory of Oral Biomedical Research of Zhejiang Pro-vince, Cancer Center of Zhejiang University, Hangzhou 310006, ChinaSFoundation:upported by: Special Fund for Basic Scientific Research of Zhejiang University (2021FZZX005-36); Research Project of the China Dental Disease Prevention and Control Foundation (A2021-090 )
  • Received:2023-06-29 Revised:2023-10-09 Online:2024-03-01 Published:2024-03-11
  • Contact: Xiaoyan Chen
  • Supported by:
    Special Fund for Basic Scientific Research of Zhejiang University(2021FZZX005-36);Research Project of the China Dental Disease Prevention and Control Foundation(A2021-090)

RichHTML

21

PDF (PC)

1171

摘要：

前牙深覆是临床中常见的疑难错畸形，常伴随有不同程度的关节、牙周及美观等问题。压低辅弓是目前临床中治疗前牙深覆的主要方式之一。压低辅弓种类繁多，不同辅弓在适应证、疗效、不良反应、弓丝弯制及生物力学等方面存在差异。在临床实践中，正畸医生应根据目标位及患者牙槽骨情况选择合适的辅弓类型，并适时调整压低力的大小和方向，以达到最佳的效果。本文就不同类型的压低辅弓的应用和研究进展作一综述，以期为临床研究的开展及临床实践提供一定的参考。

关键词: 牙齿压低, 压低辅弓, 正畸弓丝, 牙根吸收

Abstract:

Deep overbite of anterior teeth is a common and difficult malocclusion in clinical practice and is often accompanied by different degrees of joint, periodontal, and aesthetic problems. Intrusive arch is one of the main ways to correct deep overbite of anterior teeth in clinical practice. Various types of intrusion arch exist, and indications, clinical effects, side effects, wire bending, and biomechanics differ among different types of intrusive arches. Therefore, in clinical practice, orthodontists should choose an appropriate intrusion arch that caters to the target position and the patient’s dental bone condition and adjusts the size and direction of the intrusion force to achieve the best effect. This article reviews the application and research progress of different types of intrusive arch to provide reference for its implementation in clinical research and clinical practice.

Key words: tooth intrusion, intrusion arch, orthodontic wire, root resorption

中图分类号:

  • R783.5

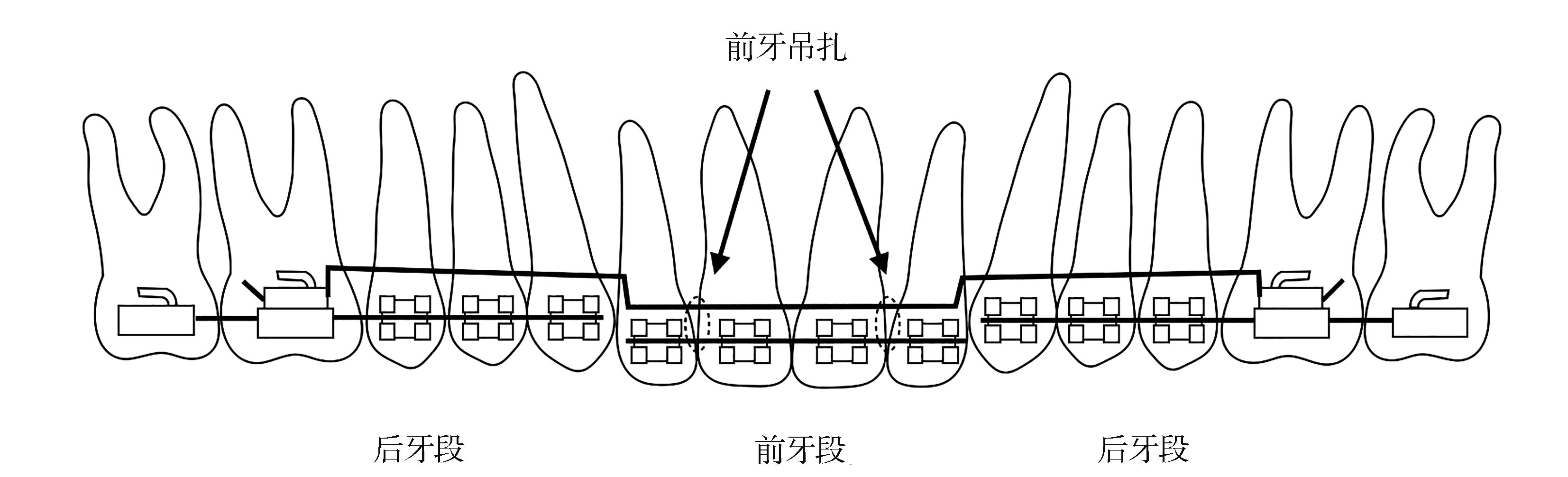

图 1

Burstone压低辅弓"

图 2

Ricketts多用途弓"

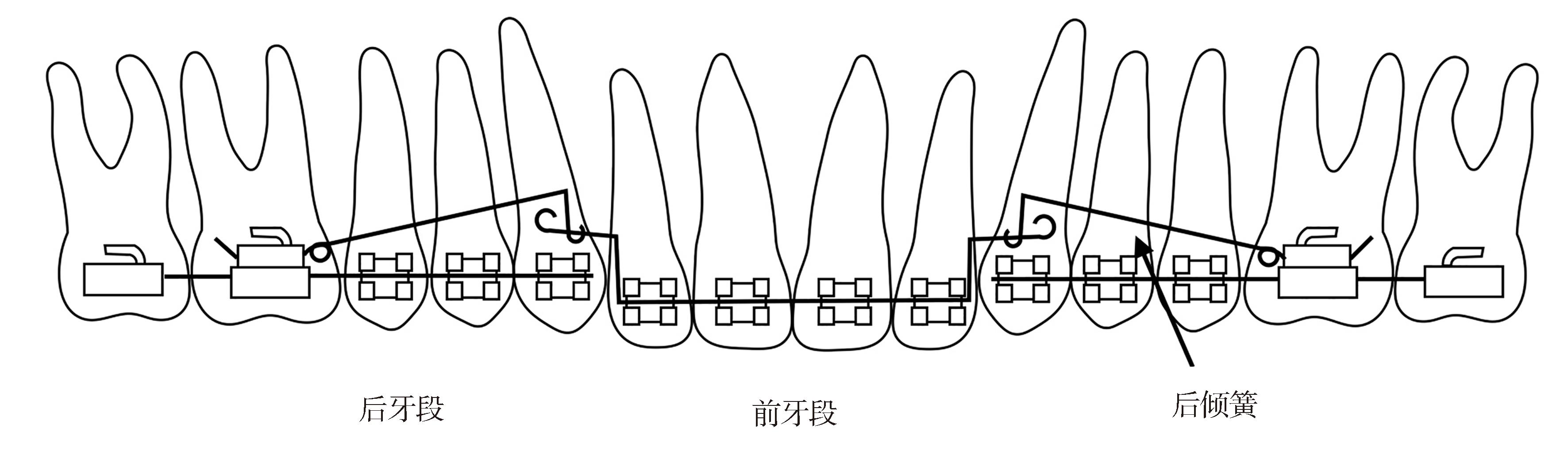

图 3

三段式片段弓压低辅弓"

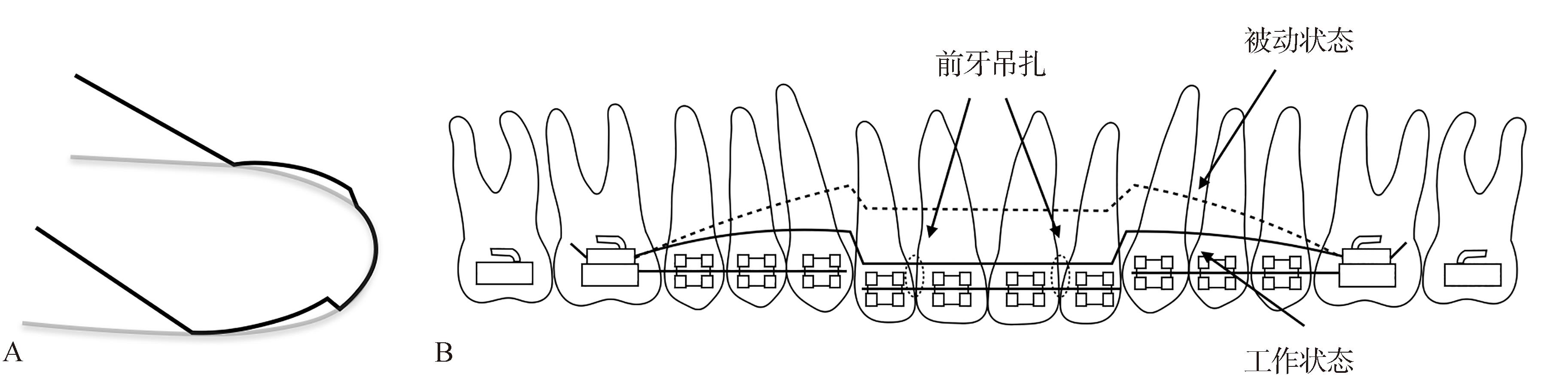

图 4

Connecticut辅弓A：可通过V曲调节压低力的大小；B；CIA/CNA就位于口内，虚线为被动状态，实线为激活后的工作状态。"

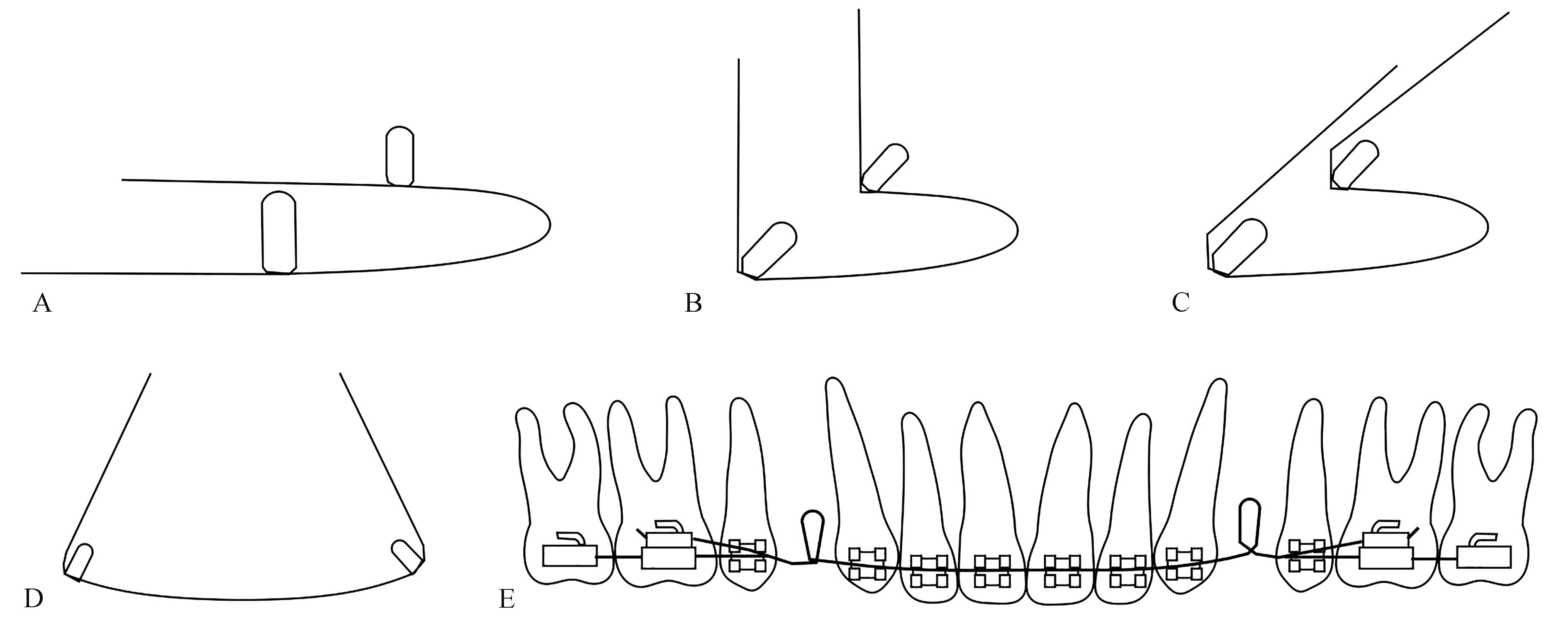

图 5

K-SIR压低技术A：双侧尖牙远中各形成一个7 mm×2 mm的U型关闭曲；B：在U型曲的近远中弯制V型曲，使其近远中段弓丝呈90°；C：U型曲远中2 mm处弯制60°的龈向V型曲；D：U型曲远中弯制20°内收弯；E：K-SIR就位于口内。"

表 1

不同压低辅弓特征、疗效及优缺点比较"

辅弓类型力偶类型压低力值/N弓丝材质绝对压低值/mm优点缺点
Burstone压低辅弓单力偶0.6不锈钢丝1.8（每月0.45）

1）压低效率高；

2）压低力持续轻柔

1）磨牙支抗消耗大；

2）前牙易唇倾

Ricketts多用途弓双力偶1.25~1.6不锈钢丝或钴铬合金丝1.6（每月0.44）

1）压低效率高；

2）弯制简单

1）前牙三维控制困难；

2）牙根吸收较显著；

3）磨牙支抗消耗较大

三段式片段弓压低技术双力偶0.6前牙段TMA丝，后牙段不锈钢丝1.66（每月0.42）

1）灵活调整压低力方向；

2）后牙支抗消耗少；

3）牙槽骨损伤较少

1）弯制复杂；

2）舒适度较差

Connecticut辅弓单力偶0.4~0.6超弹镍钛丝和TMA丝1.4 mm（每月0.35）

1）操作方便，椅旁时间少；

2）压低力持续轻柔

1）压低效率较低；

2）非个性化定制

K-SIR弓丝双力偶1.25TMA丝1.25 mm（每月0.33）

1）压低内收同时进行，缩短整体治疗时间；

2）磨牙不良反应小

1）适应证较局限；

2）前牙压低量较少

1 Yu X, Zhang H, Sun LY, et al. Prevalence of malocclusion and occlusal traits in the early mixed dentition in Shanghai, China[J]. PeerJ, 2019, 7: e6630.
2 程锦, 刘冬梅, 曾照斌, 等. 辽宁地区成人深覆患者颌面部硬组织形态特征的CBCT研究[J]. 实用口腔医学杂志, 2017, 33(3): 364-367.
Chen J, Liu DM, Zeng ZB, et al. A CBCT study of the hard tissue morphology of the maxillofacial region in adult patients with deep overbite in Liaoning area[J]. J Pract Stomatol, 2017, 33(3): 364-367.
3 Huang GJ, Bates SB, Ehlert AA, et al. Stability of deep-bite correction: a systematic review[J]. J World Fed Orthod, 2012, 1(3): e89-e96.
4 陆史俊, 王林, 王震东. 前牙压低技术在深覆患者矫治中的应用进展[J]. 国际口腔医学杂志, 2011, 38(6): 674-676, 680.
Lu SJ, Wang L, Wang ZD. Progress of anterior teeth intrusion in deep overbite treatment[J]. Int J Stomatol, 2011, 38(6): 674-676, 680.
5 Rozzi M, Mucedero M, Pezzuto C, et al. Long-term stability of curve of Spee levelled with continuous archwires in subjects with different vertical patterns: a retrospective study[J]. Eur J Orthod, 2019, 41(3): 286-293.
6 Ghafari JG, Macari AT, Haddad RV. Deep bite: treatment options and challenges[J]. Semin Orthod, 2013, 19(4): 253-266.
7 Deguchi T, Murakami T, Kuroda S, et al. Comparison of the intrusion effects on the maxillary incisors between implant anchorage and J-hook headgear[J]. Am J Orthod Dentofacial Orthop, 2008, 133(5): 654-660.
8 邓晓姝, 黄宁, 陈绪道, 等. 压低辅弓有效改正成人前牙深覆的正畸治疗[J]. 国际口腔医学杂志, 2011, 38(4): 395-398.
Deng XS, Huang N, Chen XD, et al. Intrusive auxi-liary arch can correct the anterior deep bite in adult patients effectively[J]. Int J Stomatol, 2011, 38(4): 395-398.
9 Braun S, Marcotte MR. Rationale of the segmented approach to orthodontic treatment[J]. Am J Orthod Dentofacial Orthop, 1995, 108(1): 1-8.
10 Burstone CR. Deep overbite correction by intrusion[J]. Am J Orthod, 1977, 72(1): 1-22.
11 Ricketts RM. Bioprogressive therapy as an answer to orthodontic needs Part Ⅰ[J]. Am J Orthod, 1976, 70(3): 241-268.
12 Davidovitch M, Rebellato J. Two-couple orthodontic appliance systems utility arches: a two-couple intrusion arch[J]. Semin Orthod, 1995, 1(1): 25-30.
13 Andrews LF. The six keys to normal occlusion[J]. Am J Orthod, 1972, 62(3): 296-309.
14 Shroff B, Lindauer SJ, Burstone CJ, et al. Segmen-ted approach to simultaneous intrusion and space closure: biomechanics of the three-piece base arch appliance[J]. Am J Orthod Dentofacial Orthop, 1995, 107(2): 136-143.
15 Nanda R, Marzban R, Kuhlberg A. The connecticut intrusion arch[J]. J Clin Orthod, 1998, 32(12): 708-715.
16 Bagri K, Kannan S, Singh AK, et al. Orthodontic management of deep bite in adult: a review[J]. TMU J Dent, 2018, 5(2): 23-26.
17 Kalra V. Simultaneous intrusion and retraction of the anterior teeth[J]. J Clin Orthod, 1998, 32(9): 535-540.
18 Raje Batham P, Diana Pereira Kalia U, Ramchan-dani B. An innovative use of the K-SIR arch[J]. IP Indian J Orthod Dentofac Res, 2020, 4(3): 161-163.
19 Shakti P, Ani GS, Peter E, et al. Maxillary incisor intrusion using two conventional intrusion arches and mini implants: a prospective study[J]. J Contemp Dent Pract, 2021, 22(8): 907-913.
20 Goel P, Tandon R, Agrawal KK. A comparative study of different intrusion methods and their effect on maxillary incisors[J]. J Oral Biol Craniofac Res, 2014, 4(3): 186-191.
21 Sifakakis I, Pandis N, Makou M, et al. A comparative assessment of the forces and moments genera-ted with various maxillary incisor intrusion biomechanics[J]. Eur J Orthod, 2010, 32(2): 159-164.
22 Sharma S, Vora S, Pandey V. Clinical evaluation of efficacy of CIA and CNA intrusion arches[J]. J Clin Diagn Res, 2015, 9(9): ZC29-ZC33.
23 Schwertner A, Almeida RR, Gonini A Jr, et al. Photoelastic analysis of stress generated by Connecticut Intrusion Arch (CIA)[J]. Dental Press J Orthod, 2017, 22(1): 57-64.
24 Costopoulos G, Nanda R. An evaluation of root resorption incident to orthodontic intrusion[J]. Am J Orthod Dentofacial Orthop, 1996, 109(5): 543-548.
25 de Almeida MR, Marçal ASB, Fernandes TMF, et al. A comparative study of the effect of the intrusion arch and straight wire mechanics on incisor root resorption: a randomized, controlled trial[J]. Angle Orthod, 2018, 88(1): 20-26.
26 McFadden WM, Engstrom C, Engstrom H, et al. A study of the relationship between incisor intrusion and root shortening[J]. Am J Orthod Dentofacial Orthop, 1989, 96(5): 390-396.
27 Dermaut LR, De Munck A. Apical root resorption of upper incisors caused by intrusive tooth movement: a radiographic study[J]. Am J Orthod Dentofacial Orthop, 1986, 90(4): 321-326.
28 Matsumoto K, Sherrill-Mix S, Boucher N, et al. A cone-beam computed tomographic evaluation of alveolar bone dimensional changes and the periodontal limits of mandibular incisor advancement in ske-letal Class Ⅱ patients[J]. Angle Orthod, 2020, 90(3): 330-338.
29 Guo R, Zhang L, Hu M, et al. Alveolar bone chan-ges in maxillary and mandibular anterior teeth during orthodontic treatment: a systematic review and meta-analysis[J]. Orthod Craniofac Res, 2021, 24(2): 165-179.
30 Han JY, Jung GU. Labial and lingual/palatal bone thickness of maxillary and mandibular anteriors in human cadavers in Koreans[J]. J Periodontal Implant Sci, 2011, 41(2): 60-66.
31 Kaied IB, Tanielian RH. Comparative radiographic evaluation of the alveolar bone support changes after incisal intrusion[J]. Orthodontics (Chic), 2012, 13(1): 60-71.
32 Atik E, Gorucu-Coskuner H, Akarsu-Guven B, et al. Evaluation of changes in the maxillary alveolar bone after incisor intrusion[J]. Korean J Orthod, 2018, 48(6): 367-376.
33 Erkan M, Pikdoken L, Usumez S. Gingival response to mandibular incisor intrusion[J]. Am J Orthod Dentofacial Orthop, 2007, 132(2): 143.e9-143.e13.
34 Senışık NE, Türkkahraman H. Treatment effects of intrusion arches and mini-implant systems in deepbite patients[J]. Am J Orthod Dentofacial Orthop, 2012, 141(6): 723-733.
35 Verma P, Jain RK. Intrusion effects on maxillary anteriors using mini implant anchorage and K-sir loop in subjects with deep overbite-a cohort study[J]. J Clin Diag Res, 2020: 21-25.
36 Kale Varlık S, Onur Alpakan Ö, Türköz Ç. Deepbite correction with incisor intrusion in adults: a long-term cephalometric study[J]. Am J Orthod Dentofacial Orthop, 2013, 144(3): 414-419.
37 Dake ML, Sinclair PM. A comparison of the Ric-ketts and Tweed-type arch leveling techniques[J]. Am J Orthod Dentofacial Orthop, 1989, 95(1): 72-78.
