Application of finite element simulation in preventing torsional fracture of nickel-titanium root canal files

Ruijie Liu(),Yan Sheng,Hao Zhou,Yaqun Kong()

  1. Dept. of Stomatology, Beijing Friendship Hospital, Capital Medical University, Beijing 100050, China
  • Received:2026-01-04 Revised:2026-05-13 Online:2026-09-01 Published:2026-08-28
  • Contact: Yaqun Kong E-mail:liuruijie2010@163.com;kyq31@163.com

RichHTML

1

PDF (PC)

10

Abstract:

Objective This study aimed to predict the maximum allowable torsional moment and rotation angle of nickel-titanium root canal files after jamming during root canal preparation to prevent torsional fracture. Methods 　Finite element simulation was used to calculate the stress distribution of the file and the torsional moment at the file handle when the file continued to rotate after jamming. The effects of factors, such as file and root canal morphology, on stress and torque were investigated. Results 　After the Von Mises stress reached the material phase transformation point (400‒600 MPa) during the continued rotation of the jammed file, the “torque‒rotation angle” curve entered a plateau region. When the local stress at the cross-section reached the material fracture strength (>1 000 MPa), the torque did not change significantly with the rotation angle (i.e., remained in the plateau region) due to the non-uniform stress distribution (coefficient of variation: 0.65). Depending on the file and root canal combination, the torque at fracture ranged from 0.5 N·mm to 3 N·mm, and the rotation angle ranged from 200° to 400°. Conclusion 　Finite element simulation can establish a numerical relationship between the fracture stress of the file and the allowable torsional moment and rotation angle in the file‒canal system during root canal preparation jamming, thereby providing warning parameters to effectively prevent fracture incidents.

Key words: nickel-titanium root canal file, root canal preparation, finite element simulation, fracture stress, torsional moment, rotation angle

CLC Number:

  • R783.1

TrendMD:

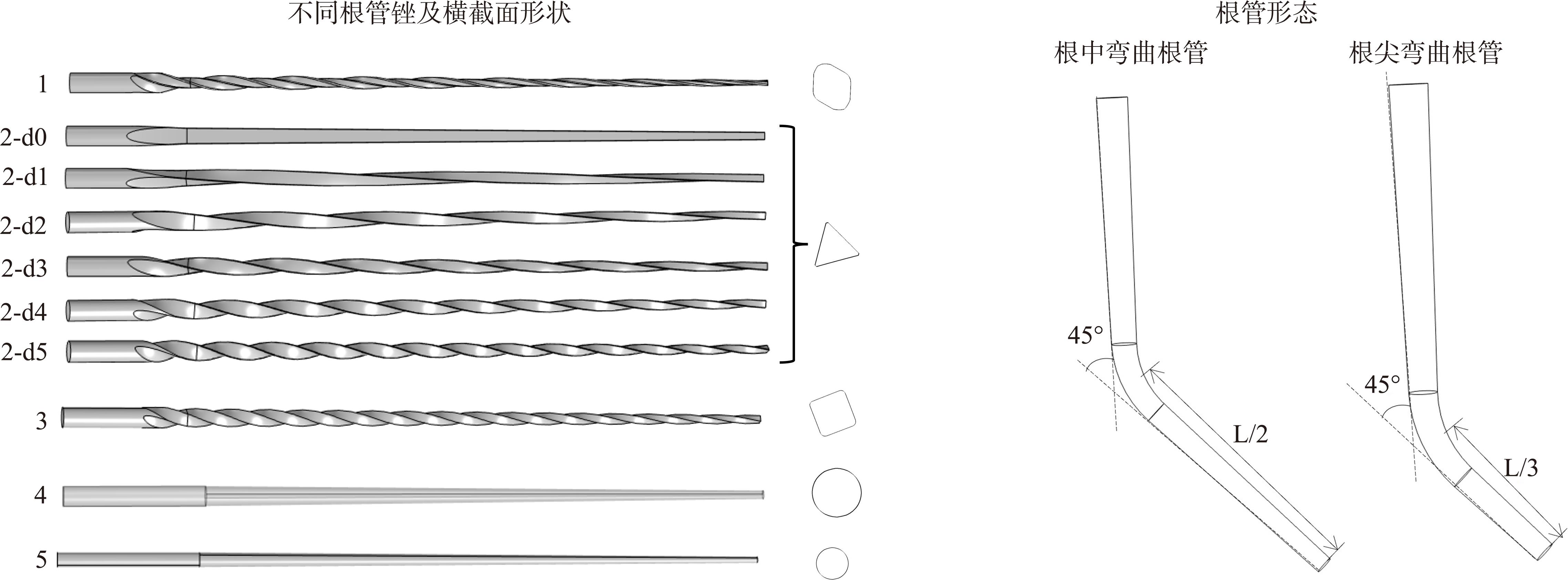

Fig 1

Geometry of the endodontic files and root canals"

Tab 1

Parameters of the constitutive model for NiTi alloy"

参数特性数值
EA奥氏体弹性模量42.53 GPa
νA泊松比0.33
EM马氏体弹性模量12.828 GPa
εL相变应变率10%
σLS加载过程相变开始应力492 MPa
σLE加载过程相变结束应力630 MPa
σMS卸载过程相变开始应力192 MPa
σME卸载过程相变结束应力97 MPa
T参考温度22 ℃
ρ密度6 300 kg/m3

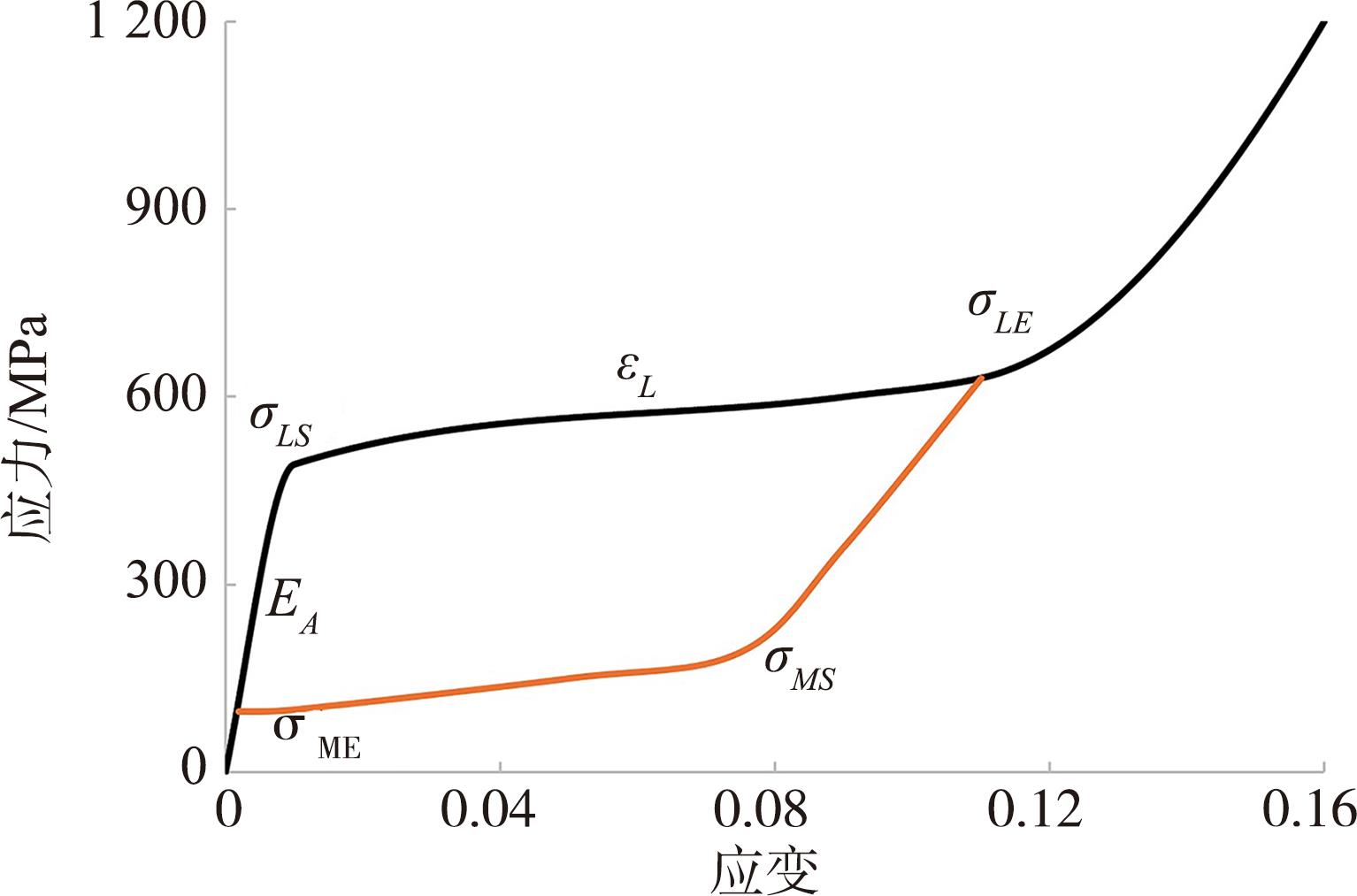

Fig 2

Stress-strain curve of NiTi shape memory alloy"

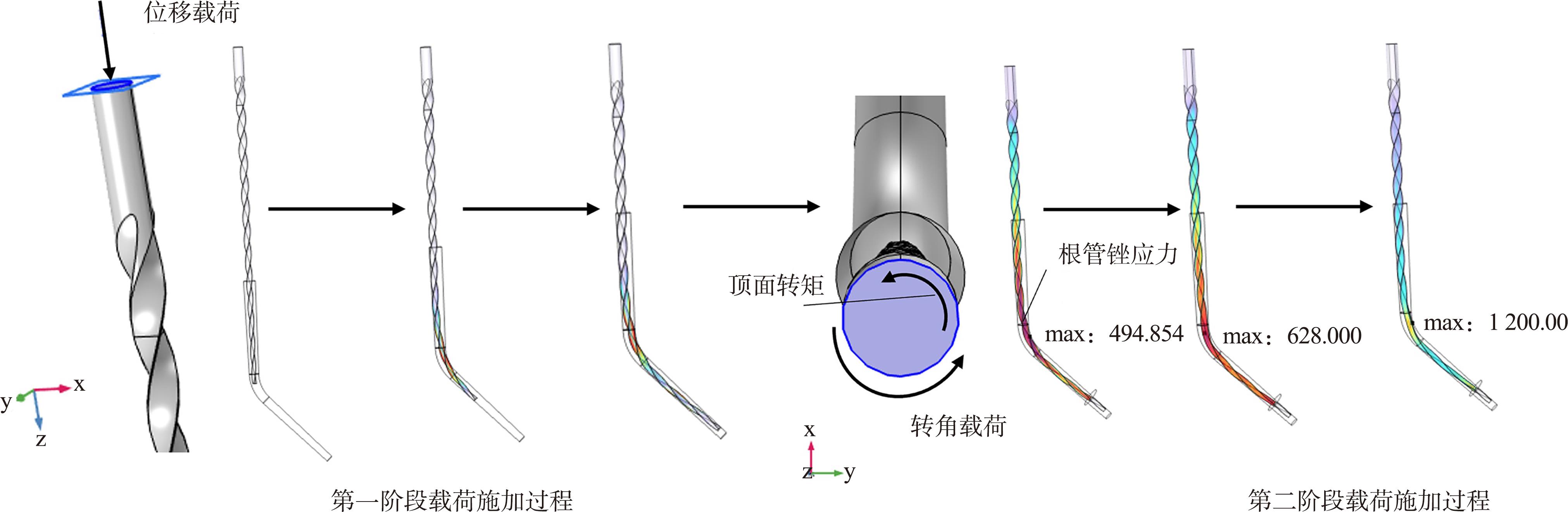

Fig 3

Boundary conditions and loading method"

Tab 2

Cross-sectional shapes of endodontic files and root canal variations as the variables"

根管二刃锉刀1三刃锉刀2四刃锉刀3大圆截面4小圆截面5
根管11-11-21-31-41-5
根管22-12-22-32-42-5

Tab 3

Relative orientation angle of endodontic file cross-section to root canal as the variables"

根管锉根管1旋转角度
α0α1α2α3α4α5α6α7α8α9
三刃锉刀22-α02-α12-α22-α32-α42-α52-α62-α72-α82-α9

Tab 4

Pitch of endodontic file as the variable"

根管锉+根管组合螺距参数
d0d1d2d3d4d5
三刃锉刀2+根管12-d02-d12-d22-d32-d42-d5

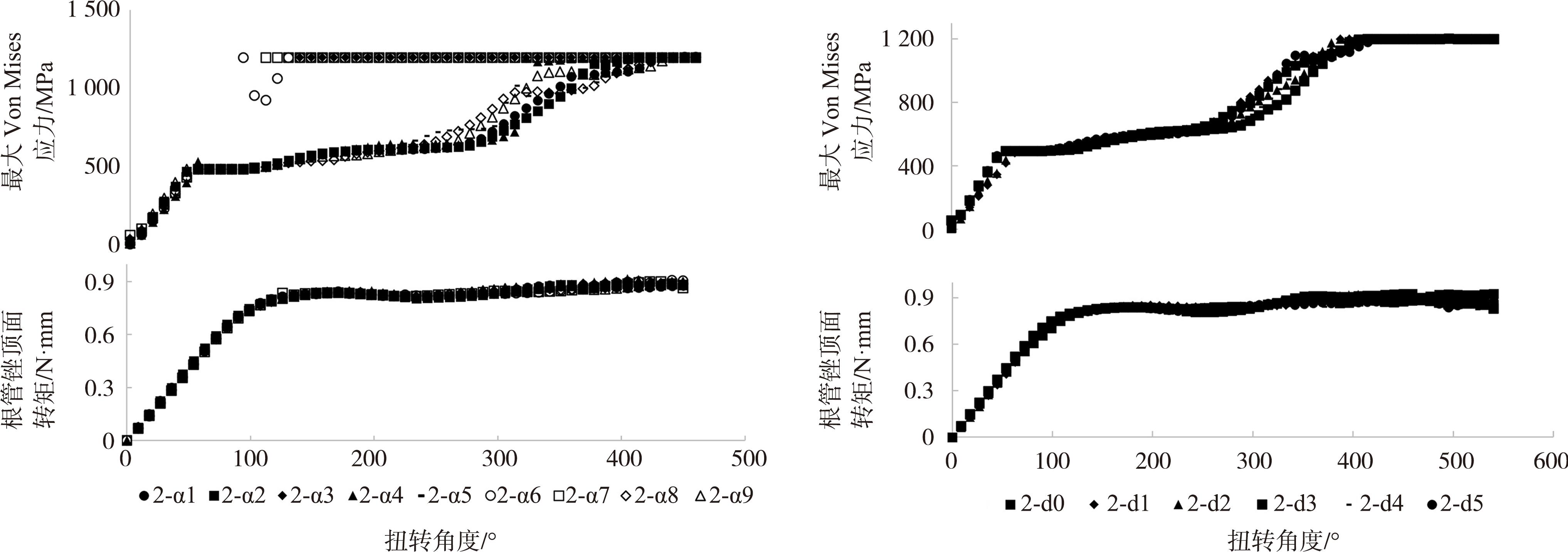

Fig 4

Von Mises stress and torque of the endodontic file after binding in the root canal during rotary preparation"

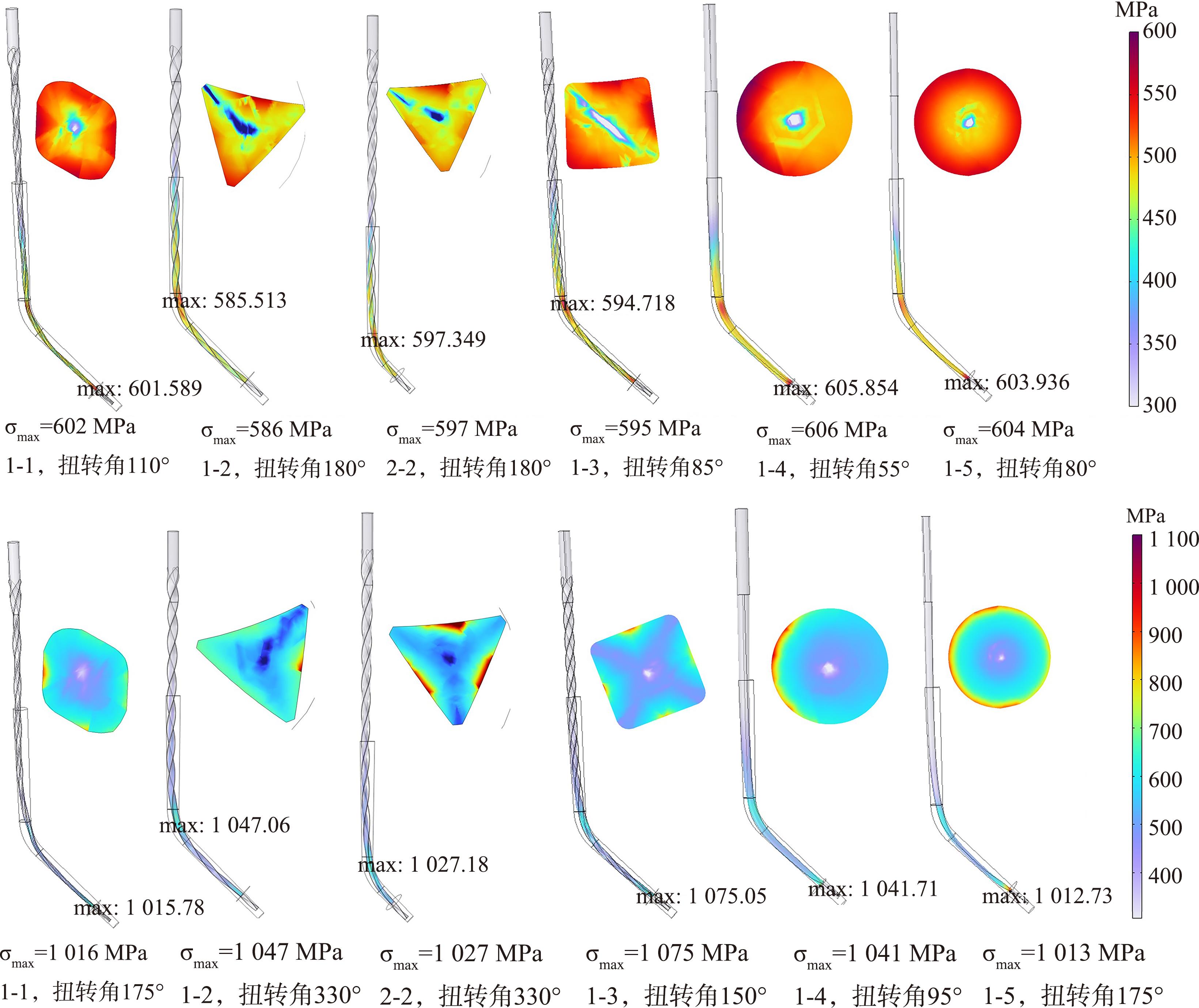

Fig 5

Von Mises stress distribution contours of the endodontic file when the torque at the tip reaches the plateau inflection point and the Von Mises stress reaches 1 000 MPa"

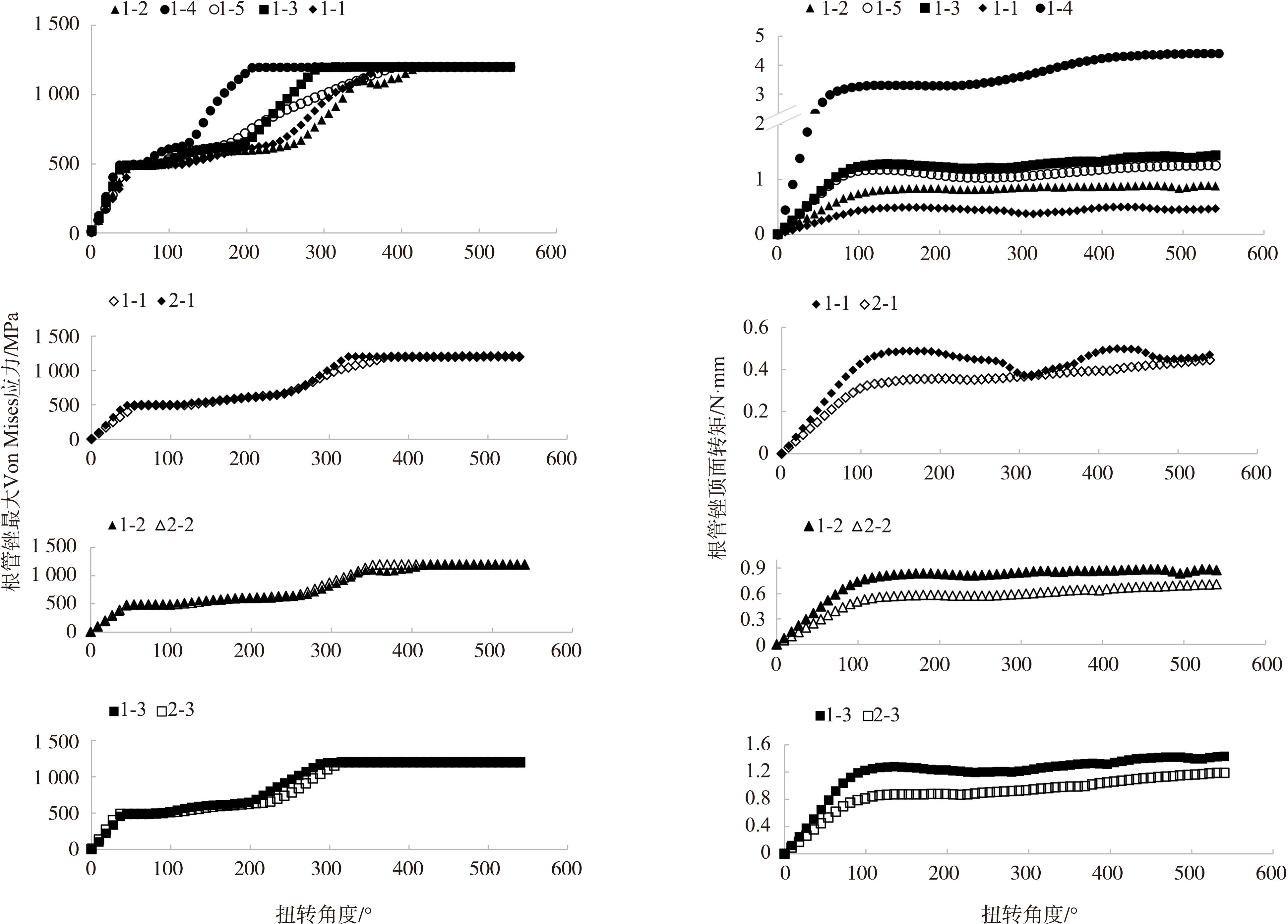

Fig 6

Influence of endodontic file cross-sectional geometry, relative orientation angle, and pitch on its Von Mises stress and apical tip torque"

[1] Abdellatif D, Iandolo A, Scorziello M, et al. Cyclic fatigue of different Ni-Ti endodontic rotary file alloys: a comprehensive review[J]. Bioengineering, 2024, 11(5): 499-514.
[2] Chien PY, Walsh LJ, Peters OA. Finite element ana-lysis of rotary nickel-titanium endodontic instruments: a critical review of the methodology[J]. Eur J Oral Sci, 2021, 129(5): e12802.
[3] 陈露, 吴补领, 高杰, 等. 三种镍钛根管器械在弯曲和扭转状态下的有限元分析[J]. 牙体牙髓牙周病学杂志, 2011, 21(3): 138-141.
Chen L, Wu BL, Gao J, et al. Finite element analysis of three NiTi Endodontic instruments under bending and torsional conditions[J]. Chin J Conserv Dent, 2011, 21(3): 138-141.
[4] 关卿, 金涛, 顾永春, 等. 3种根管预备器械在弯曲根管中扭转负载下的三维有限元分析[J]. 国际口腔医学杂志, 2015, 42(3): 269-272.
Guan Q, Jin T, Gu YC, et al. Three-dimensional finite element analysis of three types of instruments used in curved root canals subjected to torsional load[J]. Int J Stomatol, 2015, 42(3): 269-272.
[5] 蒋谊芳, 蔡绮敏, 初政一, 等. NRT FILES镍钛根管锉预备对弯曲根管应力分布的仿真分析[J]. 中国组织工程研究, 2023, 27(7): 1038-1042.
Jiang YF, Cai QM, Chu ZY, et al. Simulation analysis of stress distribution of NRT FILES in curved root canals[J]. Chin J Tissue Eng Res, 2023, 27(7): 1038-1042.
[6] Roda-Casanova V, Pérez-González A, Zubizarreta-Macho Á, et al. Fatigue analysis of NiTi rotary en-dodontic files through finite element simulation: effect of root canal geometry on fatigue life[J]. J Clin Med, 2021, 10(23): 5692-5706.
[7] 孙炜, 侯本祥. 3种镍钛机用根管预备器械抗扭力性能的比较[J]. 华西口腔医学杂志, 2010, 28(5): 471-474.
Sun W, Hou BX. Torque resistance of three different types of nickel-titanium rotary instruments[J]. West China J Stomatol, 2010, 28(5): 471-474.
[8] Morakul S, Hiran-us S, Singhatanadgid P. Finite element analysis of the mechanical behaviors of en-dodontic nickel-titanium rotary files: a review[J]. Eng J, 2023, 27(8): 29-49.
[9] Sönmez S, Koç C. Effect of several nickel-titanium rotary systems on stress distribution in mandibular molars under occlusal forces: a finite element analysis[J]. Odontology, 2025, 113(2): 666-674.
[10] Keerthi M, Sridevi E, Sai Sankar AJ, et al. Evaluation of the stress generated during biomechanical preparation with nickel-titanium rotary endodontic file using finite element analysis[J]. Saudi Endod J, 2024, 14(1): 63-68.
[11] 陈露, 吴补领, 陈造. 3种不同横截面形状的镍钛根管器械扭转性能的计算机模拟研究[J]. 牙体牙髓牙周病学杂志, 2016, 26(2): 82-85.
Chen L, Wu BL, Chen Z. A computational analysis of torsional properties of three nickel-titanium en-dodontic instruments with different cross-sections[J]. Chin J Conserv Dent, 2016, 26(2): 82-85.
[12] Pruett JP, Clement DJ, Carnes DL. Cyclic fatigue testing of nickel-titanium endodontic instruments[J]. J Endod, 1997, 23(2): 77-85.
[13] Auricchio F, Taylor RL. Shape-memory alloys: mo-delling and numerical simulations of the finite-strain superelastic behavior[J]. Comput Meth Appl Mech Eng, 1997, 143(1/2): 175-194.
[14] de Arruda Santos L, López JB, de Las Casas EB, et al. Mechanical behavior of three nickel-titanium rotary files: a comparison of numerical simulation with bending and torsion tests[J]. Mater Sci Eng C Mater Biol Appl, 2014, 37: 258-263.
[15] Ha JH, Cheung GSP, Versluis A, et al.‘Screw-in’ tendency of rotary nickel-titanium files due to design geometry[J]. Int Endod J, 2015, 48(7): 666-672.
