国际口腔医学杂志 ›› 2020, Vol. 47 ›› Issue (2): 189-195.doi: 10.7518/gjkq.2020021
Qing Ping1,Gao Shanshan2,Qian Linmao3,Yu Haiyang2()
摘要:

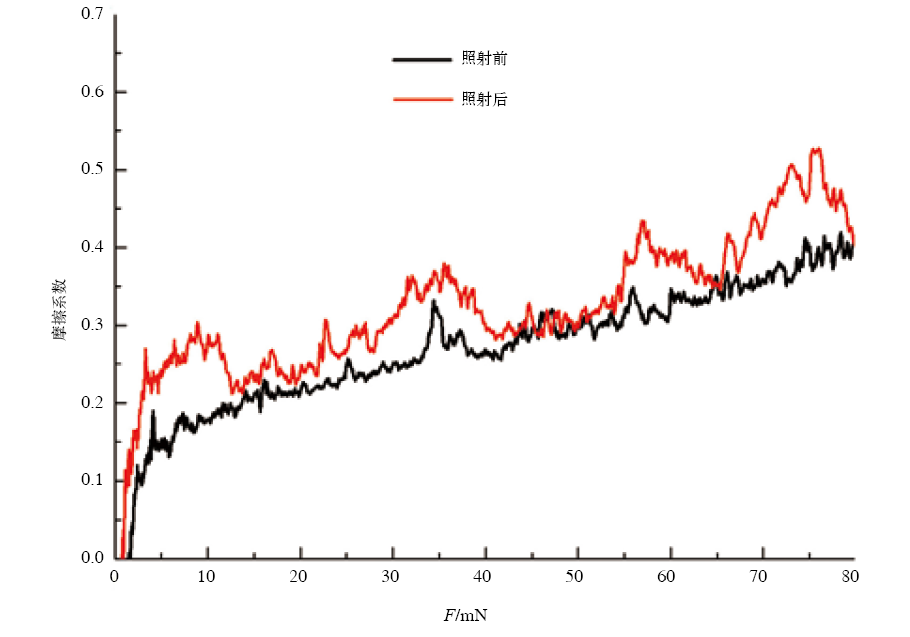

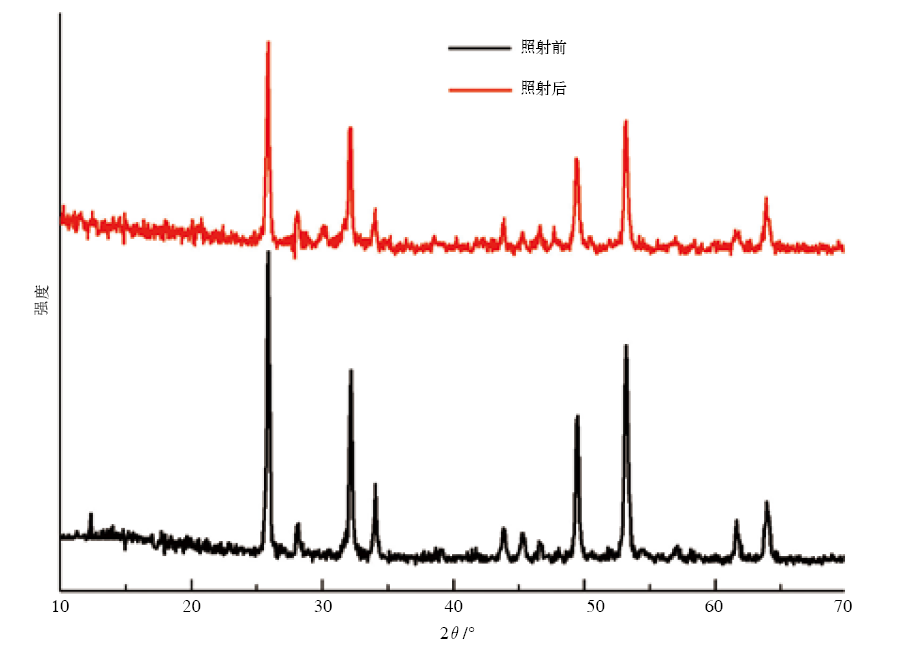

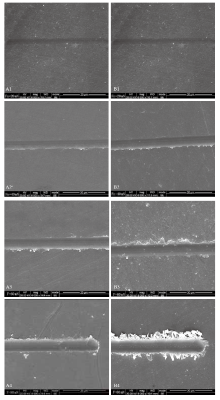

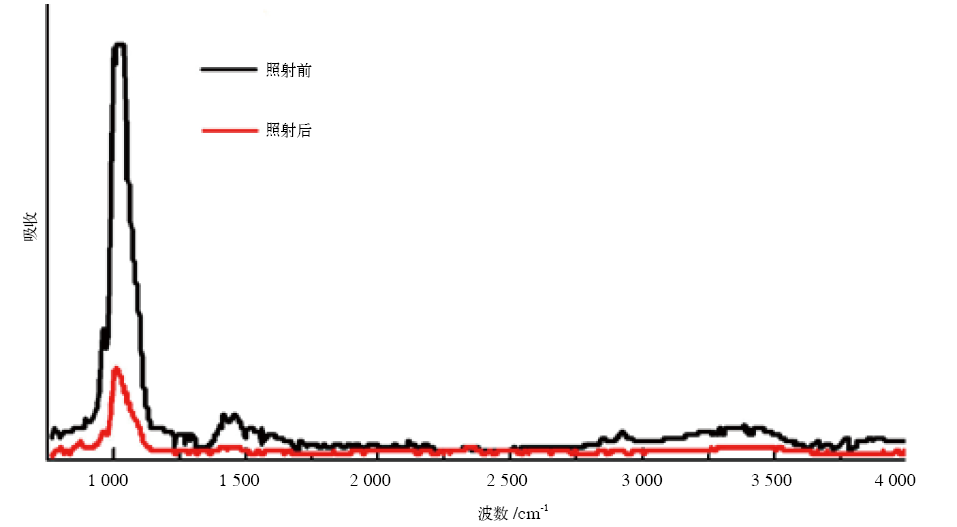

目的 研究伽马射线对釉质微观摩擦磨损性能、物质组成、晶体结构等方面的影响,为临床选择恰当的修复材料提供参考。方法 采用纳米划痕仪等仪器研究釉质在受到伽马射线照射后,其表面力学性能和摩擦学行为改变;使用X射线衍射仪、傅立叶变换红外线光谱分析仪观察射线对釉质晶相结构和化学成分的影响。结果 伽马射线照射后,釉质表面呈现更多碎屑及剥落;表面显微硬度Knoop硬度值(KHN)从照射前(420±20)KHN显著降低到(333±11)KHN(P<0.000 1);釉质晶体结晶度从82.42%±2.01%降低到71.11%±2.62%(P<0.05);晶粒尺寸和碳酸盐:矿物比均有明显增加,分别从(24.35±1.00)nm增大到(26.72±1.88)nm(P<0.05),从0.034±0.005增大到0.052±0.010(P<0.05)。结论 伽马射线可降低釉质耐磨性能,临床上为接受放射治疗的患者提供口腔治疗时应充分考虑这一因素。
中图分类号:
[1] | Torre LA, Bray F, Siegel RL , et al. Global cancer statistics, 2012[J]. CA Cancer J Clin, 2015,65(2):87-108. |
[2] | Reed R, Xu C, Liu Y , et al. Radiotherapy effect on nano-mechanical properties and chemical com-position of enamel and dentine[J]. Arch Oral Biol, 2015,60(5):690-697. |
[3] | Fränzel W, Gerlach R, Hein HJ , et al. Effect of tumor therapeutic irradiation on the mechanical properties of teeth tissue[J]. Z Med Phys, 2006,16(2):148-154. |
[4] | Soares CJ, Castro CG, Neiva NA , et al. Effect of gamma irradiation on ultimate tensile strength of enamel and dentin[J]. J Dent Res, 2010,89(2):159-164. |
[5] | Liang X, Zhang JY, Cheng IK , et al. Effect of high energy X-ray irradiation on the nano-mechanical properties of human enamel and dentine[J]. Braz Oral Res, 2016,30:S1806-S83242016000100209. |
[6] | Soares CJ, Neiva NA, Soares PB , et al. Effects of chlorhexidine and fluoride on irradiated enamel and dentin[J]. J Dent Res, 2011,90(5):659-664. |
[7] | Rashid UN, Shyamoli M, Arefuddin A . Evaluation of response to radiotherapy in early stage laryngeal carcinoma[J]. IOSR-JDMS, 2013,6:112-116. |
[8] | 陈宁, 果晶晶, 宫惠峰 . 纳米颗粒粒度测量方法进展[J]. 现代科学仪器, 2012(2):160-163. |
Chen N, Guo JJ, Gong HF . The research progress of methods for characterizing nanoparticles[J]. Mod Sci Instruments, 2012(2):160-163. | |
[9] | Huang SB, Gao SS, Cheng L , et al. Combined effects of nano-hydroxyapatite and Galla chinensis on re-mineralisation of initial enamel lesion in vitro[J]. J Dent, 2010,38(10):811-819. |
[10] | Sun LL, Liang SS, Sa Y , et al. Surface alteration of human tooth enamel subjected to acidic and neutral 30% hydrogen peroxide[J]. J Dent, 2011,39(10):686-692. |
[11] | 郑宝敏, 孙艳 . 放射性龋齿相关因素研究[J]. 国外医学(临床放射学分册), 2006,29(4):280-284. |
Zheng BM, Sun Y . Study on the related factors of radioactive caries[J]. Foreign Med Sci Clin Radiol Fascicle, 2006,29(4):280-284. | |
[12] | Zheng J, Xiao F, Qian LM , et al. Erosion behavior of human tooth enamel in citric acid solution[J]. Tribol Int, 2009,42(11/12):1558-1564. |
[13] | Zheng J, Huang H, Shi MY , et al. In vitro study on the wear behaviour of human tooth enamel in citric acid solution[J]. Wear, 2011,271(9/10):2313-2321. |
[14] | Kielbassa AM, Hinkelbein W, Hellwig E , et al. Ra-diation-related damage to dentition[J]. Lancet Oncol, 2006,7(4):326-335. |
[15] | An BB, Wang RR, Zhang DS . Role of crystal arran-gement on the mechanical performance of enamel[J]. Acta Biomater, 2012,8(10):3784-3793. |
[16] | He LH, Swain MV . Influence of environment on the mechanical behaviour of mature human enamel[J]. Biomaterials, 2007,28(30):4512-4520. |
[17] | 牛林, 张辉, 董少杰 , 等. 多尺度下人牙釉质微观结构特性观察[J]. 山西医科大学学报, 2017,48(10):1075-1078. |
Niu L, Zhang H, Dong SJ , et al. The microstructure properties of human enamel on the multi-scale[J]. J Shanxi Med Univ, 2017,48(10):1075-1078. | |
[18] | Featherstone JD, Duncan JF, Cutress TW . Crystallo-graphic changes in human tooth enamel during in-vitro caries simulation[J]. Arch Oral Biol, 1978,23(5):405-413. |
[19] | Whittaker DK . Structural variations in the surface zone of human tooth enamel observed by scanning electron microscopy[J]. Arch Oral Biol, 1982,27(5):383-392. |
[20] | Cuy JL, Mann AB, Livi KJ , et al. Nanoindentation mapping of the mechanical properties of human molar tooth enamel[J]. Arch Oral Biol, 2002,47(4):281-291. |
[21] | Ghadimi E, Eimar H, Song J , et al. Regulated fracture in tooth enamel: a nanotechnological strategy from nature[J]. J Biomech, 2014,47(10):2444-2451. |
[22] | Eimar H, Ghadimi E, Marelli B , et al. Regulation of enamel hardness by its crystallographic dimensions[J]. Acta Biomater, 2012,8(9):3400-3410. |
[23] | Zheng J, Zhou ZR . Effect of age on the friction and wear behaviors of human teeth[J]. Tribol Int, 2006,39(3):266-273. |
[24] | 黄微雅, 钟梅, 李红 , 等. 人牙釉质组成和微结构的研究[J]. 科学技术与工程, 2008,8(14):3737-3740. |
Huang WY, Zhong M, Li H , et al. Composition and microstructure analysis of human tooth enamel[J]. Sci Technol Eng, 2008,8(14):3737-3740. | |
[25] | Panighi M, G’Sell C . Effect of the tooth microstru-cture on the shear bond strength of a dental com-posite[J]. J Biomed Mater Res, 1993,27(8):975-981. |
[26] | Gao SS, Huang SB, Qian LM , et al. Nanoscratch resistance of human tooth enamel treated by Nd:YAG laser irradiation[J]. Proc Inst Mech Eng Part J, 2010,224(16):529-537. |
[27] | Zheng SY, Zheng J, Gao SS , et al. Investigation on the microtribological behaviour of human tooth enamel by nanoscratch[J]. Wear, 2011,271(9/10):2290-2296. |
[28] | 岳松龄 . 龋病的组织病理学研究(续)龋病学研究百年回顾与展望之六[J]. 牙体牙髓牙周病学杂志, 2007,17(10):549-553. |
Yue SL . Histopathology of dental caries. A review of caries research in last century[J]. Chin J Conserv Dent, 2007,17(10):549-553. | |
[29] | Hegedüs C, Bistey T, Flóra-Nagy E , et al. An atomic force microscopy study on the effect of bleaching agents on enamel surface[J]. J Dent, 1999,27(7):509-515. |
[30] | 黄建文, 施心畅, 周京琳 , 等. 冷光美白对人恒牙表层釉质的影响[J]. 华西口腔医学杂志, 2010,28(4):361-363. |
Huang JW, Shi XC, Zhou JL , et al. Effect of cold-light bleaching technique on human permanent teeth enamel surface[J]. West China J Stomatol, 2010,28(4):361-363. | |
[31] | Angker L, Swain MV, Kilpatrick N . Micro-mechanical characterisation of the properties of primary tooth dentine[J]. J Dent, 2003,31(4):261-267. |
