国际口腔医学杂志

国际口腔医学杂志 ›› 2020, Vol. 47 ›› Issue (3): 278-285.doi: 10.7518/gjkq.2020061

• 论著 • 上一篇    下一篇

低温氩氧等离子体处理的无机牛骨对MC3T3-E1细胞黏附、增殖及分化的影响

马凯,李昊,赵红梅,王永亮,刘杰,柏娜()

  1. 青岛大学附属医院口腔修复科 青岛大学口腔医学院 青岛 266003
  • 收稿日期:2019-10-22 修回日期:2020-01-06 出版日期:2020-05-01 发布日期:2020-05-08
  • 通讯作者: 柏娜
  • 作者简介:马凯,住院医师,硕士,Email：18661899317@163.com
  • 基金资助:
    国家自然科学基金(81500882)

Effects of inorganic bovine bone treated with low temperature argon-oxygen plasma on the adhesion, proliferation, and differentiation of MC3T3-E1 cells

Ma Kai,Li Hao,Zhao Hongmei,Wang Yongliang,Liu Jie,Bai Na()

  1. Dept. of Prosthodontics, The Affiliated Hospital of Qingdao University, School of Stomatology of Qingdao University, Qingdao 266003, China
  • Received:2019-10-22 Revised:2020-01-06 Online:2020-05-01 Published:2020-05-08
  • Contact: Na Bai
  • Supported by:
    National Natural Science Foundation of China(81500882)

RichHTML

11

PDF (PC)

105

摘要：

目的 研究小鼠胚胎成骨细胞MC3T3-E1在低温氩氧等离子体处理的无机牛骨上的黏附、增殖及分化特征。方法 使用低温氩氧等离子体对无机牛骨进行表面活化（实验组）后,使用扫描电子显微镜（SEM）观察无机牛骨表面形貌的变化,X射线光电子能谱分析（XPS）检测表面元素的组成。将MC3T3-E1细胞接种于低温氩氧等离子体处理的无机牛骨表面,使用SEM观察细胞的黏附形态,CCK-8法检测细胞1、3、5 d的增殖变化,碱性磷酸酶（ALP）法检测细胞7、14 d的分化状态。以不作处理的无机牛骨作为对照。结果 对照组与实验组的表面形貌无明显改变;在表面材料的元素组成上,实验组表面碳元素减少,氧、钙、磷元素均增高。实验组MC3T3-E1细胞的黏附更充分,细胞伸出伪足;培养1、3、5 d时,实验组细胞增殖数量明显高于对照组;培养14 d时,实验组ALP活性明显高于对照组（P<0.05）。结论 低温氩氧等离子体处理对无机牛骨表面小鼠胚胎成骨细胞的黏附、增殖及分化具有一定的促进作用。

关键词: 低温等离子体, 无机牛骨, 小鼠胚胎成骨细胞MC3T3-E1, 引导骨组织再生

Abstract:

Objective To study the adhesion, proliferation, and differentiation of mouse embryonic osteoblast MC3T3-E1 on inorganic bovine bone treated with low temperature argon-oxygen plasma. Methods After the surface activation of inorganic bovine bone by low temperature argon-oxygen plasma, the surface morphology of inorganic bovine bone before and after treatment was observed by scanning electron microscopy (SEM), and the surface elemental composition was detected by X-ray photoelectron spectroscopy. The MC3T3-E1 cells were inoculated on the surface of inorganic bovine bone treated with low temperature argon-oxygen plasma, and the cell adhesion morphology was observed by SEM. The proliferation of cells on days 1, 3, and 5 was detected using the CCK-8 method, and the differentiation of cells on days 7 and 14 was detected using the alkaline phosphatase (ALP) method. The control group comprised the inorganic bovine bone without treatment. Results No significant change was observed in the surface morphology of the inorganic bovine bone of the control and the argon-oxygen groups. Relative to the composition of the material elements in the control group, the argon-oxygen group had decreased surface C element and increased O, Ca, and P elements. Under SEM, the cell adhesion of the argon-oxygen group was more complete, and the cell extended pseudopodia. The cell proliferation test results showed that the number of cell proliferation in the argon-oxygen group was significantly higher than that in the control group at days 1, 3, and 5. The cell differentiation results showed that the ALP activity in the argon-oxygen group was higher than that in control group at day 14. Conclusion The inorganic bovine bone treated with low temperature argon-oxygen plasma can promote the adhesion, proliferation, and differentiation of mouse embryonic osteoblast cells.

Key words: low temperature plasma, inorganic bovine bone, mouse embryonic osteoblast MC3T3-E1, guided bone regeneration

中图分类号:

  • Q25

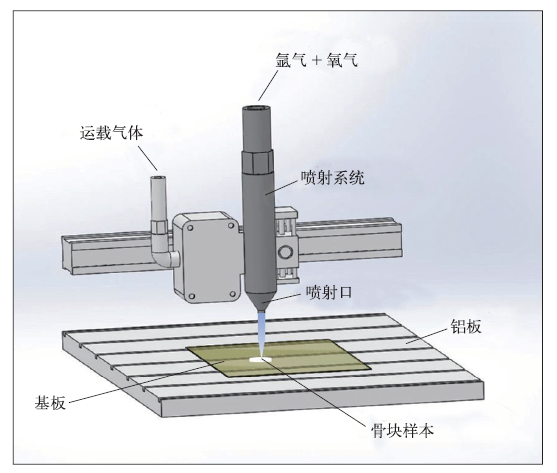

图 1

低温氩氧等离子体系统原理示意图"

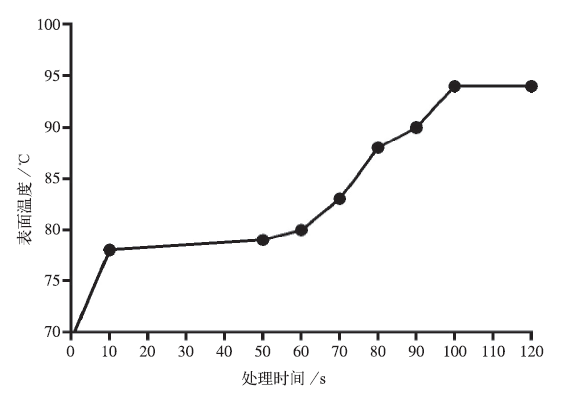

图 2

低温氩氧等离子体系统处理时间与材料表面温度的关系"

图 3

温度过高导致骨块内部连接结构断裂 SEM × 2 000"

图 4

实验组和对照组的表面形貌 SEM A：对照组,× 2 000;B：对照组,×10 000;C：实验组,× 2 000;D：实验组,× 10 000。"

表 1

两组骨块表面元素百分比的XPS分析"

组别 C1s O1s P2p Ca2p
对照 50.92 37.05 5.94 6.10
实验 43.09 43.11 6.72 7.08

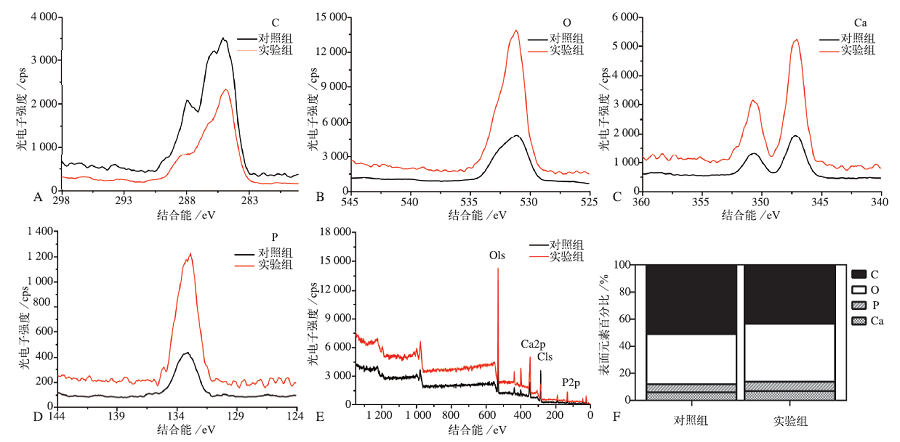

图 5

XPS检测两组骨块表面元素的变化 A：碳（C）元素;B：氧（O）元素;C：钙（Ca）元素;D：磷（P）元素;E：全谱变化;F：对照组与实验组各元素的百分比。"

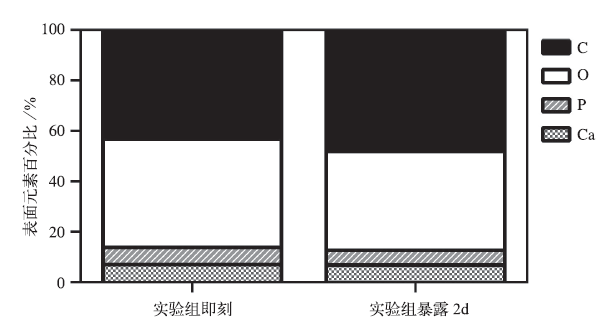

图 6

实验组即刻及暴露2 d后表面各元素百分比"

图 7

对照组和实验组表面MC3T3-E1细胞形态 SEM A：对照组,× 2 500;B：对照组,× 5 000;C：实验组,× 2 500;D：实验组,× 5 000。"

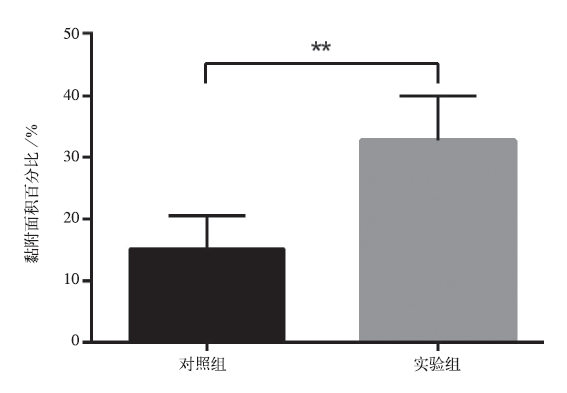

图 8

实验组和对照组表面成骨细胞的黏附面积百分比 ??P<0.01。"

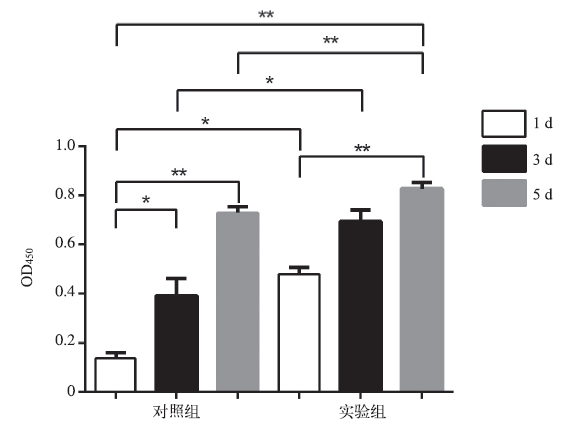

图 9

MC3T3-E1细胞增殖结果 ?P<0.05,??P<0.01。"

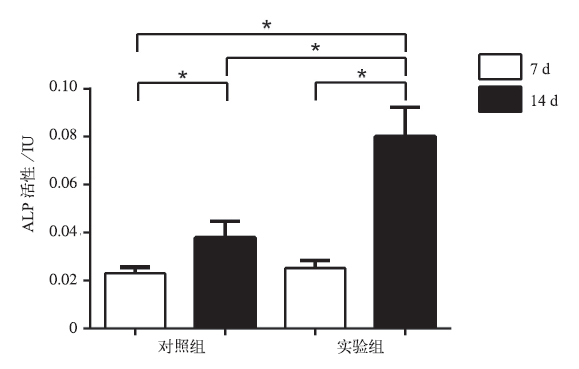

图 10

MC3T3-E1细胞ALP活性检测结果 ?P<0.05。"

[1] Salamanca E, Pan YH, Tsai AI , et al. Enhancement of osteoblastic-like cell activity by glow discharge plasma surface modified hydroxyapatite/β-tricalcium phosphate bone substitute[J]. Materials (Basel), 2017,10(12):E1347.
[2] Tanaka M, Haniu H, Kamanaka T , et al. Physico-chemical, in vitro, and in vivo evaluation of a 3D unidirectional porous hydroxyapatite scaffold for bone regeneration[J]. Materials (Basel), 2017,10(1):E33.
doi: 10.3390/ma10010033 pmid: 28772390
[3] Amerio P, Vianale G, Reale M , et al. The effect of deproteinized bovine bone on osteoblast growth factors and proinflammatory cytokine production[J]. Clin Oral Implants Res, 2010,21(6):650-655.
doi: 10.1111/j.1600-0501.2009.01881.x pmid: 20666792
[4] Huh JB, Kim SE, Song SK , et al. The effect of im-mobilization of heparin and bone morphogenic pro-tein-2 to bovine bone substitute on osteoblast-like cell’s function[J]. J Adv Prosthodont, 2011,3(3):145-151.
doi: 10.4047/jap.2011.3.3.145 pmid: 22053246
[5] Rolvien T, Barbeck M, Wenisch S , et al. Cellular mechanisms responsible for success and failure of bone substitute materials[J]. Int J Mol Sci, 2018,19(10):E2893.
doi: 10.3390/ijms19102893 pmid: 30249051
[6] Moriguchi Y, Lee DS, Chijimatsu R , et al. Impact of non-thermal plasma surface modification on porous calcium hydroxyapatite ceramics for bone regenera-tion[J]. PLoS One, 2018,13(3):e0194303.
doi: 10.1371/journal.pone.0194303 pmid: 29538457
[7] Yang J, Pu Y, Miao DG , et al. Fabrication of durably superhydrophobic cotton fabrics by atmospheric pressure plasma treatment with a siloxane precursor[J]. Polymers (Basel), 2018,10(4):E460.
doi: 10.3390/polym10040460 pmid: 30966495
[8] Schmitt C, Lutz R, Doering H , et al. Bio-Oss® blocks combined with BMP-2 and VEGF for the regenera-tion of bony defects and vertical augmentation[J]. Clin Oral Implants Res, 2013,24(4):450-460.
doi: 10.1111/j.1600-0501.2011.02351.x pmid: 22092937
[9] 高媛媛, 周子谦, 柳慧芬 , 等. RGD多肽修饰的无机小牛骨粉对MC3T3-E1细胞黏附、增殖及分化的影响[J]. 口腔医学研究, 2015,31(4):354-358.
Gao YY, Zhou ZQ, Liu HF , et al. Adhesion, prolife-ration and differentiation of MC3T3-E1 cell on bovine bone substitute modified with RGD peptide[J]. J Oral Sci Res, 2015,31(4):354-358.
[10] Kong MG, Kroesen G, Morfill G , et al. Plasma me-dicine: an introductory review[J]. New J Phys, 2009,11(11):115012.
[11] Kim JH, Lee MA, Han GJ , et al. Plasma in dentistry: a review of basic concepts and applications in den-tistry[J]. Acta Odontol Scand, 2014,72(1):1-12.
doi: 10.3109/00016357.2013.795660 pmid: 24354926
[12] Duske K, Koban I, Kindel E , et al. Atmospheric plasma enhances wettability and cell spreading on dental implant metals[J]. J Clin Periodontol, 2012,39(4):400-407.
doi: 10.1111/j.1600-051X.2012.01853.x pmid: 22324415
[13] Seon GM, Seo HJ, Kwon SY , et al. Titanium surface modification by using microwave-induced argon plasma in various conditions to enhance osteoblast biocompatibility[J]. Biomater Res, 2015,19:13.
doi: 10.1186/s40824-015-0034-2 pmid: 26331083
[14] Choi SH, Jeong WS, Cha JY , et al. Corrigendum: time-dependent effects of ultraviolet and nonthermal atmospheric pressure plasma on the biological ac-tivity of titanium[J]. Sci Rep, 2016,6:36430.
doi: 10.1038/srep36430 pmid: 27834351
[15] Bárdos L, Baránková H . Cold atmospheric plasma: sources, processes, and applications[J]. Thin Solid Films, 2010,518(23):6705-6713.
doi: 10.1016/j.tsf.2010.07.044
[16] Lee EJ, Kwon JS, Uhm SH , et al. The effects of non-thermal atmospheric pressure plasma jet on cellular activity at SLA-treated titanium surfaces[J]. Curr Appl Phys, 2013,13:S36-S41.
[17] Hayashi R, Ueno T, Migita S , et al. Hydrocarbon deposition attenuates osteoblast activity on titanium[J]. J Dent Res, 2014,93(7):698-703.
doi: 10.1177/0022034514536578 pmid: 24868012
[18] Pham PV . Cleaning of graphene surfaces by low-pressure air plasma[J]. R Soc Open Sci, 2018,5(5):172395.
doi: 10.1098/rsos.172395 pmid: 29892425
[19] França R, Samani TD, Bayade G , et al. Nanoscale surface characterization of biphasic calcium pho-sphate, with comparisons to calcium hydroxyapatite and β-tricalcium phosphate bioceramics[J]. J Colloid Interface Sci, 2014,420:182-188.
doi: 10.1016/j.jcis.2013.12.055 pmid: 24559717
[20] 马楚凡, 李冬梅, 李贺军 , 等. 微弧氧化方法在钛表面注入钙磷离子及对成骨细胞早期附着的影响[J]. 第一军医大学学报, 2005,25(1):62-65.
Ma CF, Li DM, Li HJ , et al. Modification of titanium surface with calcium and phosphorus ions using micro-arc oxidation and its effect on osteoblast atta-chment[J]. J First Mil Med Univ, 2005,25(1):62-65.
[21] 王卫卫 . 低温等离子体对纯钛生物活化后的表面分析[D]. 青岛: 青岛大学, 2019.
Wang WW . Surface analysis of pure titanium bioac-tivation after low temperature plasma treatment[D]. Qingdao: Qingdao University, 2019.
[22] 谢艳婷, 李绍杰, 顾舒扬 , 等. 冷常压等离子体处理对纯钛表面性能和成骨细胞增殖迁移的影响研究[J]. 中国实用口腔科杂志, 2018,11(11):674-678, 683.
Xie YT, Li SJ, Gu SY , et al. Study on the effects of cold atmospheric plasma on property of pure titanium surface and proliferation and migration of osteoblasts[J]. Chin J Pract Stomatol, 2018,11(11):674-678, 683.
[23] Shen H, Hu XX, Yang F , et al. Combining oxygen plasma treatment with anchorage of cationized gelatin for enhancing cell affinity of poly(lactide-co-glycolide)[J]. Biomaterials, 2007,28(29):4219-4230.
doi: 10.1016/j.biomaterials.2007.06.004 pmid: 17618682
[24] Wang HY, Kwok DT, Wang W , et al. Osteoblast behavior on polytetrafluoroethylene modified by long pulse, high frequency oxygen plasma immersion ion implantation[J]. Biomaterials, 2010,31(3):413-419.
doi: 10.1016/j.biomaterials.2009.09.066 pmid: 19811820
[25] Mwale F, Wang HT, Nelea V , et al. The effect of glow discharge plasma surface modification of polymers on the osteogenic differentiation of committed human mesenchymal stem cells[J]. Biomaterials, 2006,27(10):2258-2264.
doi: 10.1016/j.biomaterials.2005.11.006 pmid: 16313952
