下颌下腺良性肿瘤功能性手术的研究进展

沈洁(),何地,刘雁鸣()

  1. 浙江大学医学院附属第二医院口腔颌面外科 杭州 310009
  • 收稿日期:2020-08-14 修回日期:2020-12-12 出版日期:2021-03-01 发布日期:2021-03-17
  • 通讯作者: 刘雁鸣
  • 作者简介:沈洁,硕士,Email： 21818179@zju.edu.cn

Research progress on the functional surgery of benign submandibular gland tumors

Shen Jie(),He Di,Liu Yanming()

  1. Dept. of Oral and Maxillofacial Surgery, The Second Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou 310009, China
  • Received:2020-08-14 Revised:2020-12-12 Online:2021-03-01 Published:2021-03-17
  • Contact: Yanming Liu

RichHTML

25

PDF (PC)

638

摘要：

下颌下腺切除术是治疗下颌下腺良性肿瘤最常用的治疗方法,但术后皮肤瘢痕、潜在的面神经下颌缘支损伤和舌神经损伤,以及腺体摘除可能导致的口干等并发症将会不同程度地影响患者的生活质量。为此,下颌下腺功能性手术日益被采用和改进,以期提高术后生活质量。本文围绕下颌下腺手术的美观切口设计,内镜和机器人辅助手术技术的应用,以及下颌下腺区重要组织的功能保护等3个方面对下颌下腺良性肿瘤的功能性手术的进展进行综述,以期为临床治疗方案选择提供参考。

关键词: 下颌下腺良性肿瘤, 下颌下腺疾病, 功能性手术, 下颌下腺部分切除术, 机器人外科手术, 内镜

Abstract:

Submandibular gland resection is the most widely accepted treatment for benign submandibular gland tumors. However, postoperative complications such as external scar formation in a highly visible area, increasing incidence of damage to facial and lingual nerves, and xerostomia seriously affect patients' quality of life. As such, the functional surgery of the submandibular gland has been widely used. This review summarized the research progress on functional surgery as a treatment for benign submandibular gland tumors in terms of three aspects to provide a reference for the clinical treatment of benign submandibular gland neoplasms: 1) modified surgical approaches to improve cosmetic results and decrease complications, 2) endoscopic techniques and surgical robot systems in submandibular gland surgery, and 3) opera-ting techniques to preserve the function of important tissues in the submandibular gland region.

Key words: submandibular gland neoplasms, submandibular gland diseases, functional surgery, partial submandibular gland resection, robotic surgical procedures, endoscopes

中图分类号:

  • R739.87

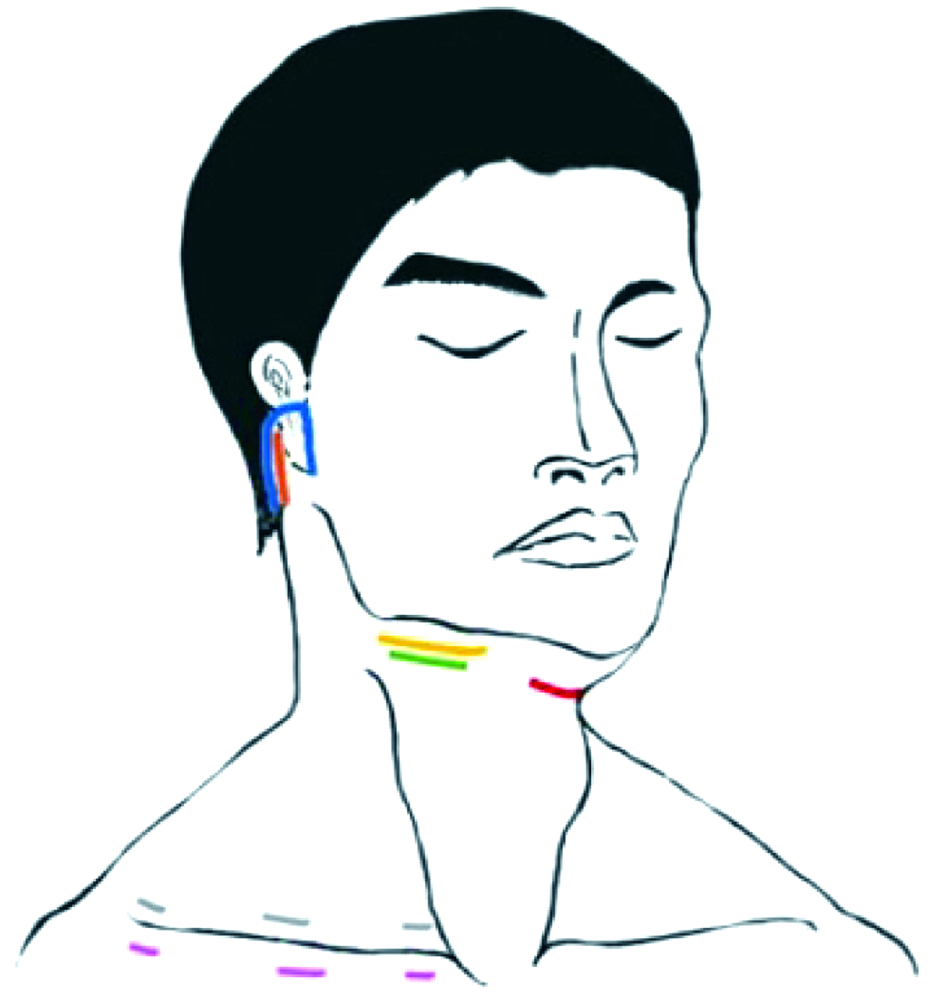

图1

下颌下腺手术切口设计示意图 蓝色：发际线-耳后切口;橙色：改良发际线切口;黄色：传统颈侧切口;绿色：改良下颌下区颈侧小切口;红色：颏下舌骨水平切口;灰色：锁骨上切口;粉色：锁骨下切口。"

表1

传统开放式手术方法、内镜辅助手术技术和机器人辅助手术技术优缺点对比"

优缺点 传统开放式手术 内镜辅助手术 机器人辅助手术
优点 1）术区暴露充分,便于控制术中出血;
2）至术区路程短;
3）便于扩大切口及手术范围;
4）仍为下颌下腺与周围组织粘连较为严重的炎性病损以及下颌下腺区恶性肿瘤的首选手术方法		 1）可制作远程隐蔽区切口,较为美观;
2）局部放大视野,减少组织损伤;
3）全内镜下手术可获得较大手术活动范围,便于较大肿瘤的切除		 1）可制作远程隐蔽区切口,较为美观;
2）机械臂机动性佳,减少了术者手颤动对手术的影响,操作更准确;
3）机械臂360°的运动范围,可达到刚性的内镜仪器难以进入的术区;
4）可实现三维放大视野,更清晰辨认组织结构,操作更安全;
5）术中出血量较少
缺点 1）术后颈部瘢痕较明显,美观性不足;
2）术中面神经下颌缘支、舌神经、舌下神经易损伤		 1）不可呈现三维手术视野,呈平面暴露视野;
2）器械笔直,易造成手术器械碰撞;
3）依赖助手控制手术视野;
4）不适用于下颌下腺与周围组织严重粘连的病损		 1）手术费用较高;
2）技术敏感性;
3）手术时间较长;
4）缺乏触觉反馈;
5）不适用于与周围组织严重粘连的下颌下区病损

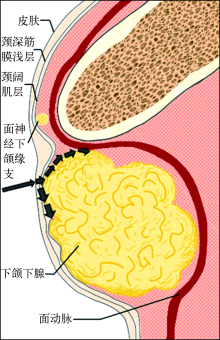

图2

面神经下颌缘支非识别法的手术模式图 黑色箭头示手术解剖方向。"

[1] Spiro RH. Salivary neoplasms: overview of a 35-year experience with 2, 807 patients[J]. Head Neck Surg, 1986,8(3):177-184.
doi: 10.1002/hed.2890080309 pmid: 3744850
[2] Ethunandan M, Davies B, Pratt CA, et al. Primary epithelial submandibular salivary gland tumours-review of management in a district general hospital setting[J]. Oral Oncol, 2009,45(2):173-176.
doi: 10.1016/j.oraloncology.2008.04.011
[3] Yu G, Peng X. Conservative and functional surgery in the treatment of salivary gland tumours[J]. Int J Oral Sci, 2019,11(3):22.
doi: 10.1038/s41368-019-0059-9 pmid: 31413317
[4] Yang TL. Robotic surgery for submandibular gland resection through a trans-hairline approach: the first human series and comparison with applicable approaches[J]. Head Neck, 2018,40(4):793-800.
doi: 10.1002/hed.25058 pmid: 29356204
[5] Byeon HK, Koh YW. The new era of robotic neck surgery: the universal application of the retroauricular approach[J]. J Surg Oncol, 2015,112(7):707-716.
doi: 10.1002/jso.24019 pmid: 26410781
[6] Cammaroto G, Vicini C, Montevecchi F, et al. Submandibular gland excision: from external surgery to robotic intraoral and extraoral approaches[J]. Oral Dis, 2020,26(5):853-857.
doi: 10.1111/odi.13340 pmid: 32246560
[7] Hamza Y, Khalil R. Video-assisted submandibular resection: two-step technique[J]. Surg Endosc, 2009,23(12):2785-2789.
doi: 10.1007/s00464-009-0492-5
[8] Li YN, Xue RQ, Lai QG, et al. Endoscope-assisted resection of nonneoplastic space-occupying lesion in oral and maxillofacial areas[J]. Sci Rep, 2017,7(1):16920.
doi: 10.1038/s41598-017-17226-z pmid: 29208942
[9] Parente Arias PL, Fernández Fernández MM, Varela Vázquez P, et al. Minimally invasive video-assisted submandibular sialadenectomy: surgical technique and results from two institutions[J]. Surg Endosc, 2016,30(8):3314-3320.
doi: 10.1007/s00464-015-4604-0 pmid: 26487240
[10] Roh JL. Removal of the submandibular gland by a submental approach: a prospective, randomized, controlled study[J]. Oral Oncol, 2008,44(3):295-300.
doi: 10.1016/j.oraloncology.2007.03.003
[11] Chen MK, Su CC, Tsai YL, et al. Minimally invasive endoscopic resection of the submandibular gland: a new approach[J]. Head Neck, 2006,28(11):1014-1017.
doi: 10.1002/hed.20469 pmid: 16933310
[12] Lee JC, Kao CH, Chang YN, et al. Intraoral excision of the submandibular gland: how we do it[J]. Clin Otolaryngol, 2010,35(5):434-438.
doi: 10.1111/j.1749-4486.2010.02178.x pmid: 21108758
[13] Hughes CA, Brown J. Pediatric trans-oral submandibular gland excision: a safe and effective technique[J]. Int J Pediatr Otorhinolaryngol, 2017,93:13-16.
doi: 10.1016/j.ijporl.2016.11.026 pmid: 28109484
[14] 石亮, 宋晓彬, 王克涛, 等. 隐蔽切口入路内镜辅助颈部肿物切除效果初探[J]. 中华口腔医学杂志, 2020,55(2):115-118.
Shi L, Song XB, Wang KT, et al. A novel surgical technique for neck neoplasms: endoscope-assisted resection of benign tumors via a small concealed incision[J]. Chin J Stomatol, 2020,55(2):115-118.
[15] Hong KH, Yang YS. Surgical results of the intraoral removal of the submandibular gland[J]. Otolaryngol Head Neck Surg, 2008,139(4):530-534.
doi: 10.1016/j.otohns.2008.01.008 pmid: 18922339
[16] Lin XZ, Liang LM, Shao XJ, et al. Trans-oral robo-tic surgery of submandibular gland removal with preservation of sublingual gland and whartonʼs duct[J]. J Craniofacial Surg, 2019,30(1):237-238.
doi: 10.1097/SCS.0000000000004995
[17] Ahn D, Sohn JH, Lee GJ, et al. Feasibility of using the retroauricular approach without endoscopic or robotic assistance for excision of benign neck mas-ses[J]. Head Neck, 2017,39(4):748-753.
doi: 10.1002/hed.24678 pmid: 28067967
[18] Singh RP, Sung ES, Song CM, et al. Robot-assisted excision of the submandibular gland by a postauri-cular facelift approach: comparison with the conventional transcervical approach[J]. Br J Oral Maxillofac Surg, 2017,55(10):1030-1034.
doi: 10.1016/j.bjoms.2017.10.013 pmid: 29122340
[19] de Brito Neves CP, Lira RB, Chulam TC, et al. Re-troauricular endoscope-assisted versus conventional submandibular gland excision for benign and malignant tumors[J]. Surg Endosc, 2020,34(1):39-46.
doi: 10.1007/s00464-019-07173-3 pmid: 31811452
[20] Lee HS, Kim D, Lee SY, et al. Robot-assisted versus endoscopic submandibular gland resection via retroauricular approach: a prospective nonrando-mi-zed study[J]. Br J Oral Maxillofac Surg, 2014,52(2):179-184.
doi: 10.1016/j.bjoms.2013.11.002 pmid: 24360715
[21] De Virgilio A, Park YM, Kim WS, et al. Robotic sia-loadenectomy of the submandibular gland via a mo-dified face-lift approach[J]. Int J Oral Maxillofac Surg, 2012,41(11):1325-1329.
doi: 10.1016/j.ijom.2012.04.008 pmid: 22578632
[22] Brasnu D. Robot-assisted submandibular gland resection via retroauricular approaches: does the end justify the means[J]. Laryngoscope, 2013,123(2):374-375.
doi: 10.1002/lary.23733 pmid: 23315655
[23] Song CM, Jung YH, Sung MW, et al. Endoscopic resection of the submandibular gland via a hairline incision: a new surgical approach[J]. Laryngoscope, 2010,120(5):970-974.
doi: 10.1002/lary.20865 pmid: 20422693
[24] Rao V, Prasad R, Subash A, et al. Technique of flap elevation for robot assisted selective neck dissection via retroauricular approach: a surgeon,s guide[J]. J Robot Surg, 2020,14(2):337-341.
doi: 10.1007/s11701-019-00992-5 pmid: 31230266
[25] Woo SH, Park JJ, Kwon M, et al. Hidden scar,, submandibular gland excision using an endoscope-assisted hairline approach[J]. Oral Oncol, 2017,65:83-88.
doi: 10.1016/j.oraloncology.2016.12.018 pmid: 28109474
[26] Lee DY, Jung KY, Baek SK. Endoscopic submandibular gland resection preserving great auricular nerve and periaural sensation[J]. Auris Nasus Larynx, 2016,43(1):89-92.
doi: 10.1016/j.anl.2015.08.013 pmid: 26454535
[27] Piromchai P, Suetrong S. Total endoscopic submandibular sialoadenectomy using a 3-port supraclavi-cular approach: a new technique[J]. Ear Nose Throat J, 2020: 145561320919559.
[28] 彭福森, 杜友红, 张欣, 等. 全腔镜下经锁骨下径路颌下腺腺叶切除[J]. 临床耳鼻咽喉头颈外科杂志, 2016,30(6):471-473.
Peng FS, Du YH, Zhang X, et al. Submandibular gland resection via subclavian into the road under the endoscope[J]. J Clin Otorhinolaryngol Head Neck Surg, 2016,30(6):471-473.
[29] Elzahaby IA, Khater A, Abdallah A, et al. Absence of neck scars with total endoscopic submandibular sialadenectomy using a chest wall approach: a new technique[J]. Surg Innov, 2018,25(1):37-42.
doi: 10.1177/1553350617751460 pmid: 29303064
[30] Meningaud JP, Pitak-Arnnop P, Bertrand JC. Endoscope-assisted submandibular sialoadenectomy: a pilot study[J]. J Oral Maxillofac Surg, 2006,64(9):1366-1370.
doi: 10.1016/j.joms.2006.05.032 pmid: 16916670
[31] Guerrissi JO, Taborda G. Endoscopic excision of the submandibular gland by an intraoral approach[J]. J Craniofacial Surg, 2001,12(3):299-303.
doi: 10.1097/00001665-200105000-00018
[32] Marzouk MF. Robot-assisted glandular surgery[J]. Atlas Oral Maxillofac Surg Clin North Am, 2018,26(2):153-157.
doi: 10.1016/j.cxom.2018.05.006 pmid: 30077323
[33] Nakayama M, Holsinger FC, Chevalier D, et al. The dawn of robotic surgery in otolaryngology-head and neck surgery[J]. Jpn J Clin Oncol, 2019,49(5):404-411.
doi: 10.1093/jjco/hyz020 pmid: 30796834
[34] Yang TL, Li H, Holsinger FC, et al. Submandibular gland resection via the trans-hairline approach: a preclinical study of a novel flexible single-port surgical system and the surgical experiences of standard multiarm robotic surgical systems[J]. Head Neck, 2019,41(7):2231-2238.
doi: 10.1002/hed.25692 pmid: 30896063
[35] Liu HH, Li LJ, Shi B, et al. Robotic surgical systems in maxillofacial surgery: a review[J]. Int J Oral Sci, 2017,9(2):63-73.
doi: 10.1038/ijos.2017.24 pmid: 28660906
[36] Humphrey SP, Williamson RT. A review of saliva: normal composition, flow, and function[J]. J Prosthet Dent, 2001,85(2):162-169.
doi: 10.1067/mpr.2001.113778 pmid: 11208206
[37] Chiesa Estomba C, Valldeperes-Vilanova A, Gonzá-lez-García J, et al. Neurological complications and quality of life after submandibular gland resection. A prospective, non-randomized, single-centre study[J]. Otolaryngol Pol, 2019,73(6):32-37.
doi: 10.5604/01.3001.0013.4120 pmid: 31823841
[38] Ge N, Peng X, Zhang L, et al. Partial sialoadenectomy for the treatment of benign tumours in the submandibular gland[J]. Int J Oral Maxillofac Surg, 2016,45(6):750-755.
[39] Roh JL, Park CI. Gland-preserving surgery for pleomorphic adenoma in the submandibular gland[J]. Br J Surg, 2008,95(10):1252-1256.
doi: 10.1002/bjs.6306 pmid: 18720459
[40] Xu H, Mao C, Liu JM, et al. Microanatomic study of the vascular and duct system of the submandibular gland[J]. J Oral Maxillofac Surg, 2011,69(4):1103-1107.
doi: 10.1016/j.joms.2010.03.006 pmid: 20619950
[41] Min R, Zun Z, Siyi L, et al. Gland-preserving surgery can effectively preserve gland function without increased recurrence in treatment of benign submandibular gland tumour[J]. Br J Oral Maxillofac Surg, 2013,51(7):615-619.
doi: 10.1016/j.bjoms.2013.01.009 pmid: 23399108
[42] 张强, 谭艳林, 陈凯瑞, 等. 下颌下腺良性肿瘤部分腺体切除术的临床研究[J]. 重庆医学, 2018,47(33):4296-4298.
Zhang Q, Tan YL, Chen KR, et al. Clinical study of partial glandectomy for benign submandibular gland tumors[J]. Chongqing Med, 2018,47(33):4296-4298.
[43] Hu YJ, Zheng CY, Cao R, et al. Resection of benign tumours of the submandibular gland with harmonic scalpel-assisted minimally extracapsular dissection[J]. J Int Med Res, 2020,48(1):030006051989278.
doi: 10.1177/0300060519892783
[44] Douville NJ, Bradford CR. Comparison of ultrasound-guided core biopsy versus fine-needle aspiration biopsy in the evaluation of salivary gland lesions[J]. Head Neck, 2013,35(11):1657-1661.
doi: 10.1002/hed.23193 pmid: 23109044
[45] Blake P. Excision of the submandibular gland: minimizing the risk of nerve damage: comment[J]. Aust N Z J Surg, 1989,59(11):894.
doi: 10.1111/j.1445-2197.1989.tb07035.x pmid: 2818351
[46] Kikuoka Y, Kawata R, Higashino M, et al. Operative technique for benign submandibular gland mass without identifying the mandibular branch of the facial nerve[J]. Auris Nasus Larynx, 2018,45(6):1221-1226.
doi: 10.1016/j.anl.2018.04.011 pmid: 29789194
[47] Yang HM, Won SY, Kim HJ, et al. Neurovascular structures of the mandibular angle and condyle: a comprehensive anatomical review[J]. Surg Radiol Anat, 2015,37(9):1109-1118.
doi: 10.1007/s00276-015-1482-z pmid: 25956586
[48] Woltmann M, Faveri Rd, Sgrott EA. Anatomosurgical study of the marginal mandibular branch of the facial nerve for submandibular surgical approach[J]. Braz Dent J, 2006,17(1):71-74.
doi: 10.1590/s0103-64402006000100016 pmid: 16721470
[49] Gosain AK. Surgical anatomy of the facial nerve[J]. Clin Plast Surg, 1995,22(2):241-251.
pmid: 7634735
[50] Ichimura K, Nibu K, Tanaka T. Nerve paralysis after surgery in the submandibular triangle: review of University of Tokyo Hospital experience[J]. Head Neck, 1997,19(1):48-53.
doi: 10.1002/(sici)1097-0347(199701)19:1<48::aid-hed9>3.0.co;2-v pmid: 9030945
[51] Prosser JD, Bush CM, Solares CA, et al. Trans-oral robotic submandibular gland removal[J]. J Robotic Surg, 2013,7(1):87-90.
doi: 10.1007/s11701-012-0369-9
