不同补偿间隙3D打印正颌手术𬌗板对咬合精度的影响

马建斌(),薛超然,王沛棋,李彬,白丁()

  1. 口腔疾病研究国家重点实验室 国家口腔疾病临床医学研究中心四川大学华西口腔医院正畸科 成都 610041
  • 收稿日期:2021-11-16 修回日期:2022-03-05 出版日期:2022-05-01 发布日期:2022-05-09
  • 通讯作者: 白丁
  • 作者简介:马建斌,硕士,Email:Jianbin_Ma@outlook.com
  • 基金资助:
    四川省科技创新苗子工程(20-YCG045)

Effect of 3D printing orthognathic surgical splints with different dental model offsets on occlusal precision

Ma Jianbin(),Xue Chaoran,Wang Peiqi,Li Bin,Bai Ding.()

  1. State Key Laboratory of Oral Diseases & National Clinical Research Center for Oral Diseases & Dept. of Orthodontics, West China Hospital of Stomatology, Sichuan University, Chengdu 610041, China
  • Received:2021-11-16 Revised:2022-03-05 Online:2022-05-01 Published:2022-05-09
  • Contact: Ding. Bai
  • Supported by:
    Miaozi Project in Science and Technology Innovation Program of Sichuan Province(20-YCG045)

摘要: 目的

研究不同补偿间隙3D打印正颌手术𬌗板(OSS)对咬合精度的影响,并探讨制作OSS的最适补偿间隙。

方法

选取10副符合正常𬌗咬合标准的树脂模型,使用光学扫描仪获取其数字化模型,利用3D光敏树脂打印机制作树脂研究模型,扫描获取其原始咬合数字化模型。分别对每副模型设计不同补偿间隙(0.00、0.05、0.10、0.15、0.20、0.25 mm)的数字化OSS,并使用3D打印法制作实体OSS。将各副树脂研究模型的上、下牙列重新咬合于不同补偿间隙的OSS上,评估上、下牙列的实际咬合在水平向、矢状向、垂直向、俯仰、滚转、偏航6个维度上较原始咬合的偏差。

结果

1)使用无补偿间隙(0.00 mm)的OSS,获得的实际咬合在6个维度上均有偏差,垂直向(1.044 mm±0.181 mm)及俯仰(1.738°±0.772°)维度上的偏差最大。2)在矢状向、垂直向、俯仰、滚转维度上,随着补偿间隙的增大,实际咬合的偏差均值逐渐减小。其中在垂直向和俯仰维度上,0.15 mm组所获实际咬合的偏差分别小于0.00、0.05、0.10 mm组(P<0.01),而与0.20、0.25 mm组的差异无统计学意义(P>0.05)。在矢状向和滚转维度,各组间的差异均无统计学意义(P>0.05)。3)在水平向及偏航维度,实际咬合的偏差在0.00~0.20 mm组内随着补偿间隙的增大,偏差均值逐渐减小,而0.25 mm组的实际咬合偏差较0.20 mm组增大,但差异均无统计学意义(P>0.05)。

结论

设计有补偿间隙的3D打印OSS能够减小实际咬合的偏差,0.15 mm是制作OSS的最适补偿间隙。

关键词: 计算机辅助技术, 3D打印, 正颌手术𬌗板, 补偿间隙

Abstract: Objective

This study aimed to assess the precision of 3D-printed orthognathic surgical splints (OSS) with different dental model offsets and explore the optimal offsets of OSS.

Methods

Ten resin models that met the standard of normal occlusion were selected, and the digital models were obtained by using an optical scanner. The research models were made by using a 3D photosensitive resin printer, and then the original digital models were obtained. Digital OSS with different offsets (0.00, 0.05, 0.10, 0.15, 0.20, and 0.25 mm groups) was designed for each model, and physical OSS was fabricated by 3D printing. The upper and lower dentition of each resin model was reoccluded in OSS with different offsets, and the deviation of the actual occlusion from the original occlusion in six dimensions of horizontal, sagittal, vertical, pitch, roll, and yaw was evaluated.

Results

1) The actual occlusion obtained by OSS without offsets (0.00 mm group) had deviation in six dimensions, and the deviation in vertical (1.044±0.181 mm) and pitch (1.738°±0.772°) dimensions was the largest. 2) In sagittal, vertical, pitch, and roll dimensions, the mean value of actual occlusal deviation gradually decreases with the increase of offsets. In the vertical and pitch dimensions, the actual occlusal deviation of the 0.15 mm group was significantly less than that of the 0.00, 0.05, and 0.10 mm groups (P<0.01), but no significant difference was found between the 0.20 mm and 0.25 mm groups (P>0.05). In addition, no significant difference in sagittal and roll dimensions was found among the groups (P>0.05). 3) In the horizontal and yaw dimensions, within the range of 0.00-0.20 mm, the mean value of actual occlusal deviation gradually decreased with the increase of offsets (P>0.05). However, the actual occlusal deviation of the 0.25 mm group was larger than that of the 0.20 mm group (P>0.05).

Conclusion

3D printed OSS with offsets can reduce the deviation of the actual occlusion. Among the parameters, 0.15 mm is the suitable option for generating OSS.

Key words: computer-aided technology, 3D printing, orthognathic surgical splints, offsets

中图分类号:

  • R 783

图1

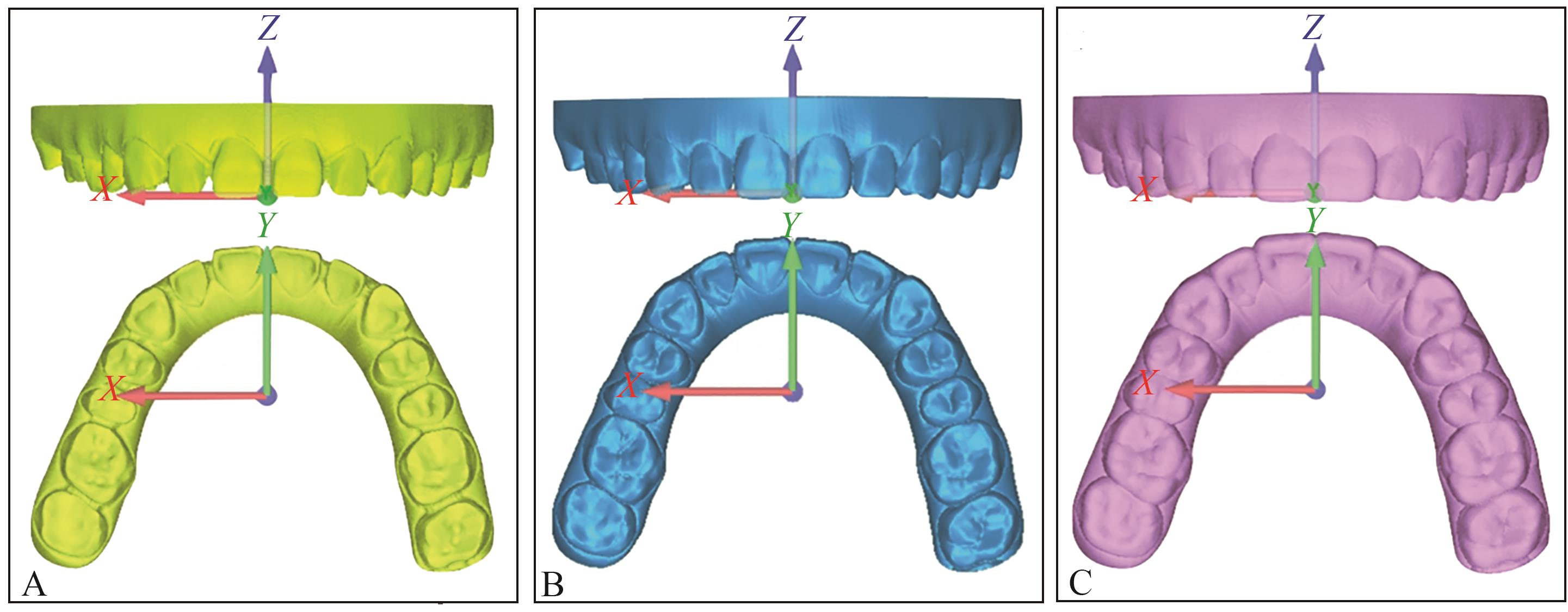

具有不同法向偏移量的研究模型A:负法向偏移模型;B:原始模型;C:正法向偏移模型。"

图2

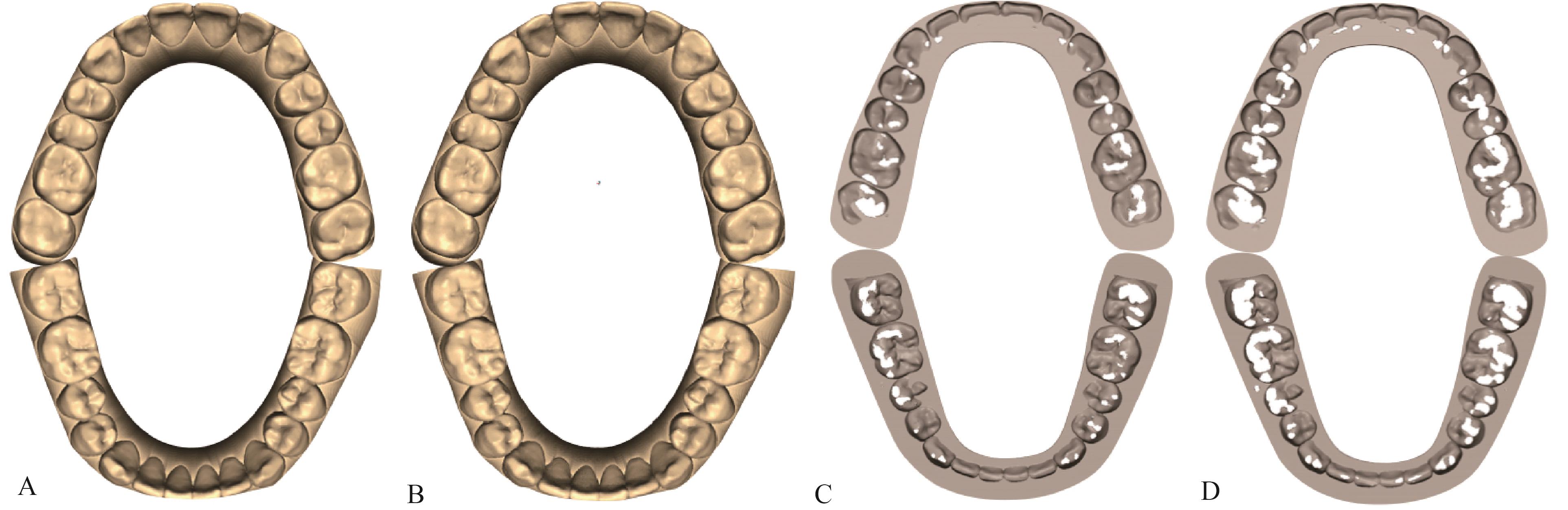

具有补偿间隙的OSS的制作A:原始模型;B:设计有正法向偏移的模型;C:基于原始模型制作的数字化OSS;D:基于有正法向偏移的模型制作的数字化OSS。"

图3

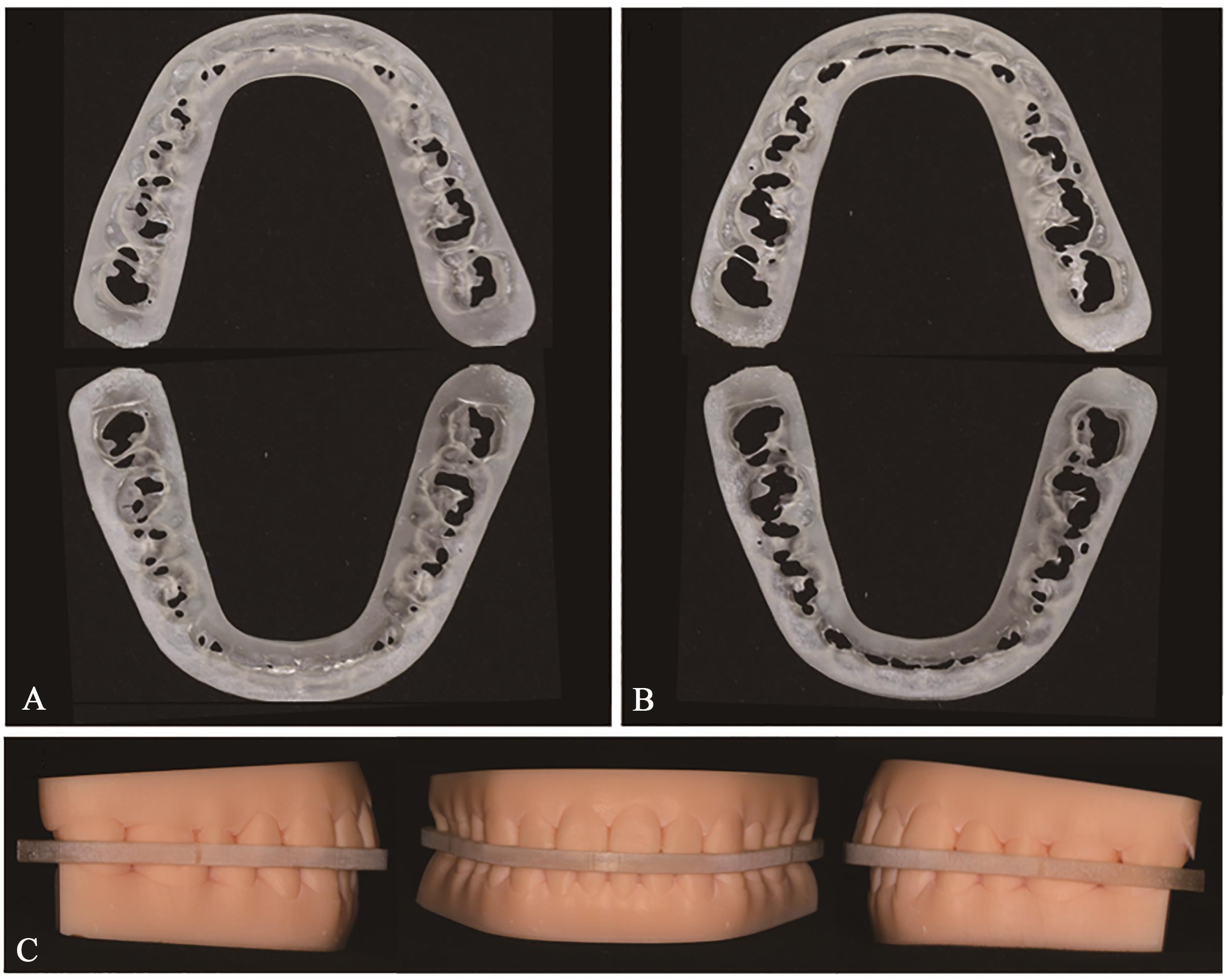

实体OSS及咬合模型A:基于原始模型制作的实体OSS;B:基于有正法向偏移的模型制作的实体OSS;C:上下牙列咬合于实体OSS。"

图4

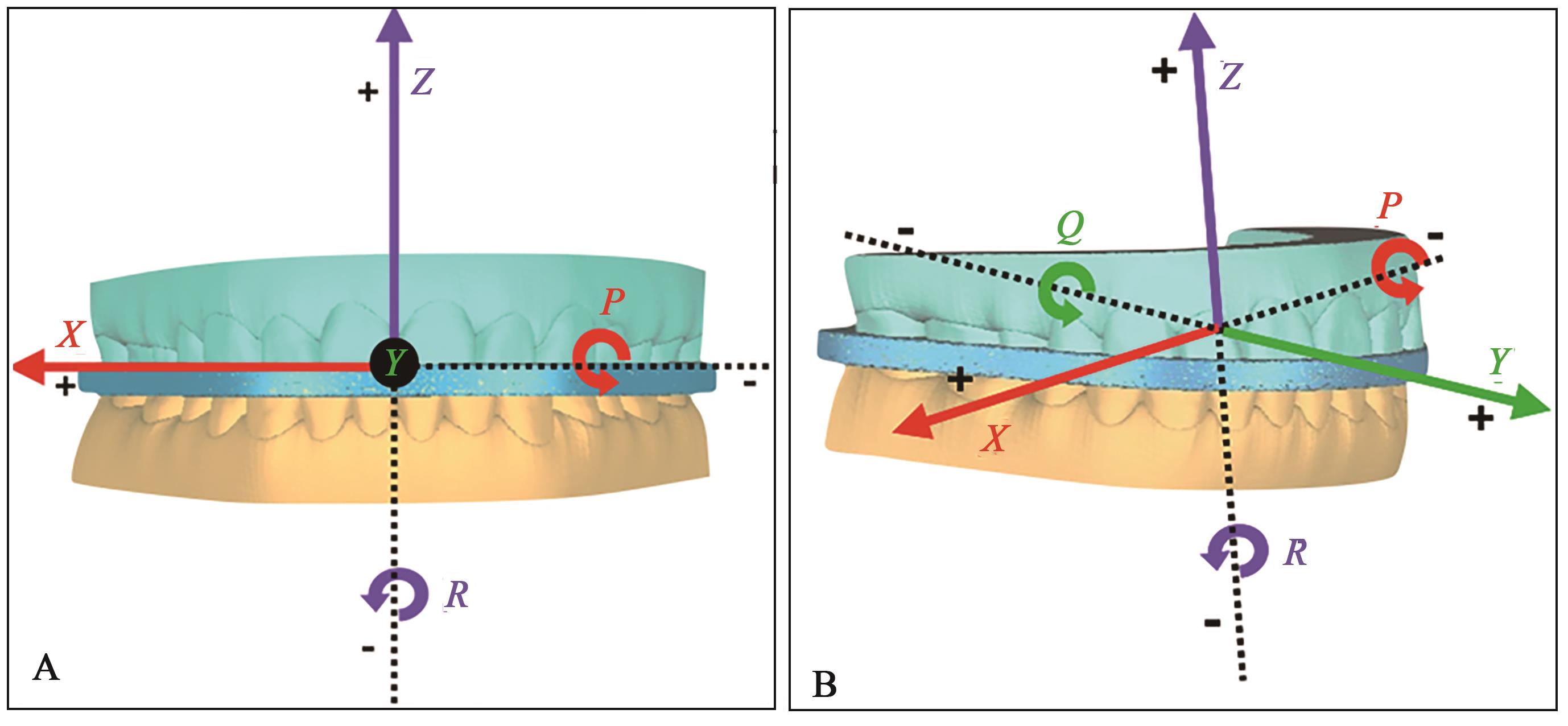

参考模型全局坐标系A:正面观;B:侧面观。X:水平向;Y:矢状向;Z:垂直向;P:俯仰;Q:滚转;R:偏航。"

表 1

测量维度定义"

维度正向负向
X配准模型相对于参考模型位于坐标原点右侧配准模型相对于参考模型位于坐标原点左侧
Y配准模型相对于参考模型位于坐标原点前方配准模型相对于参考模型位于坐标原点后方
Z配准模型相对于参考模型位于坐标原点上方配准模型相对于参考模型位于坐标原点下方
P配准模型相对于参考模型位于坐标原点前上或后下配准模型相对于参考模型位于坐标原点前下或后上
Q配准模型相对于参考模型位于坐标原点左上或右下配准模型相对于参考模型位于坐标原点左下或右上
R配准模型相对于参考模型位于坐标原点左后或右前配准模型相对于参考模型位于坐标原点左前或右后

表 2

同一研究者测量及试验操作可重复性结果"

ICC水平向(X矢状向(Y垂直向(Z俯仰(P滚转(Q偏航(R
测量方法0.9840.9970.9990.9980.9850.994
试验操作0.9670.9350.9680.9650.9320.920

表 3

不同补偿间隙OSS在 X、Y、Z 三维向上平移偏差的总体情况"

补偿间隙最大值最小值均值标准差P
XYZXYZXYZXYZXYZ
0.000.1740.1861.4210.0210.0110.8130.0750.1211.0440.0510.0500.1810.1060.8270.542
0.050.1980.1721.0950.0120.0630.4130.0720.1090.7430.0540.0410.2170.1250.2960.576
0.100.0860.2200.7120.0010.0110.1230.0350.1040.3880.0330.0710.2180.0500.7130.272
0.150.1150.2180.5440.0110.0120.0030.0300.0770.1760.0410.0630.1750.0690.0560.124
0.200.0560.2480.2660.0020.0010.0120.0280.0740.1130.0170.0750.1010.5910.1030.056
0.250.1640.2210.1550.0060.0010.0050.0580.0720.0660.0470.0760.0490.1940.0630.437

表 4

不同补偿间隙OSS在 P、Q、R 三维向上旋转偏差的总体情况"

补偿间隙/mm最大值最小值均值标准差P
PQRPQRPQRPQRPQR
0.002.9380.6460.1180.6500.0170.0161.7380.2840.1570.7720.1890.0340.3960.0770.297
0.052.7320.8470.3870.0180.0510.0121.6690.2440.1320.7810.2370.1150.4940.0530.106
0.101.6291.2330.5090.0280.0080.0010.8340.2210.0940.6210.4090.1590.1590.0630.052
0.151.4600.6590.2140.0780.0090.0190.6240.1760.0870.5240.2110.0640.0880.1390.279
0.200.9520.7090.1060.1100.0120.0030.5670.1310.0470.3310.2140.0360.1860.0720.407
0.250.8690.6270.9100.0440.0030.0420.2870.0960.2020.2960.1880.2630.0680.1210.685

表 5

不同补偿间隙OSS在各个维度的偏差值 (mm,xˉ±s)"

维度补偿间隙/mm
0.000.050.100.150.200.25
X/mm0.071±0.0510.072±0.0540.035±0.0330.056±0.0410.028±0.0170.058±0.047
Y/mm0.083±0.0500.109±0.0410.104±0.0710.077±0.0630.077±0.0750.072±0.076
Z/mm1.044±0.181☆◇△○0.743±0.217☆◇△○0.388±0.218*#◇△○0.176±0.175*#☆0.113±0.100*#☆0.066±0.048*#☆
P/°1.738±0.772☆◇△○1.669±0.781☆◇△○0.834±0.621*#0.624±0.524*#☆0.567±0.331*#☆0.287±0.296*#☆
Q/°0.204±0.1890.189±0.2370.281±0.4090.209±0.2110.151±0.2140.096±0.188
R/°0.057±0.0340.132±0.1150.094±0.1590.087±0.0640.047±0.0360.202±0.263

图 5

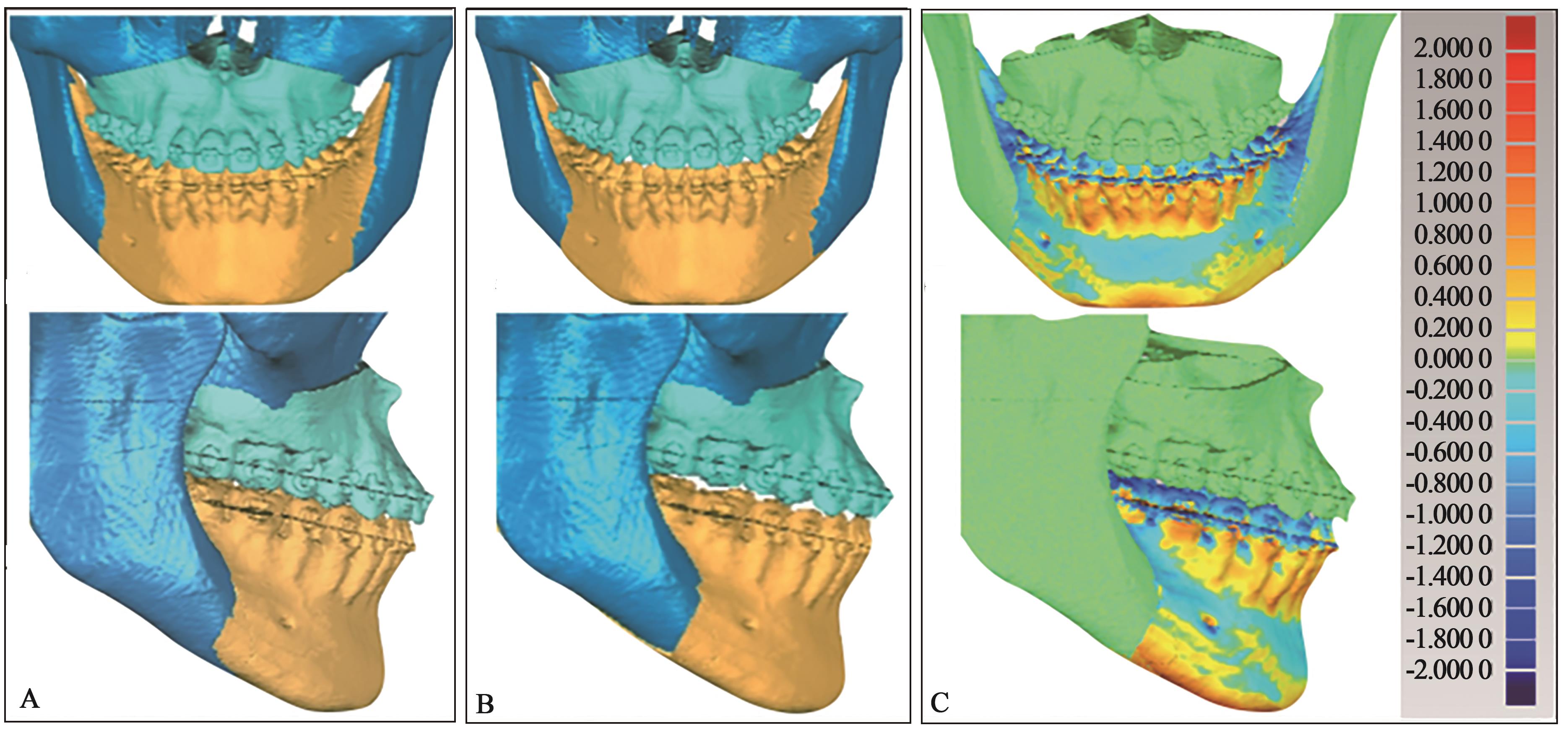

以原始咬合为参考,OSS垂直维度咬合偏差对下颌骨块位置的影响A:原始咬合及颌骨关系;B:垂直向1.421 mm偏差对咬合及下颌骨块的影响;C:三维重叠色谱分析。当OSS离坐标圆心存在1.421 mm垂直向误差时,最大可引起下颌远心骨段外周区域(如颏部、下颌升支区域等)下移1.593 mm。"

图 6

以原始咬合为参考,OSS俯仰维度咬合偏差对下颌骨块位置的影响A:原始咬合及颌骨关系;B:俯仰维度2.938°偏差对咬合及下颌骨块的影响;C:三维重叠色谱分析。当OSS绕坐标圆心存在2.938°前下俯仰误差时,最大可引起下颌颏部区域后移2.632 mm,下颌升支区域上移3.238 mm。"
